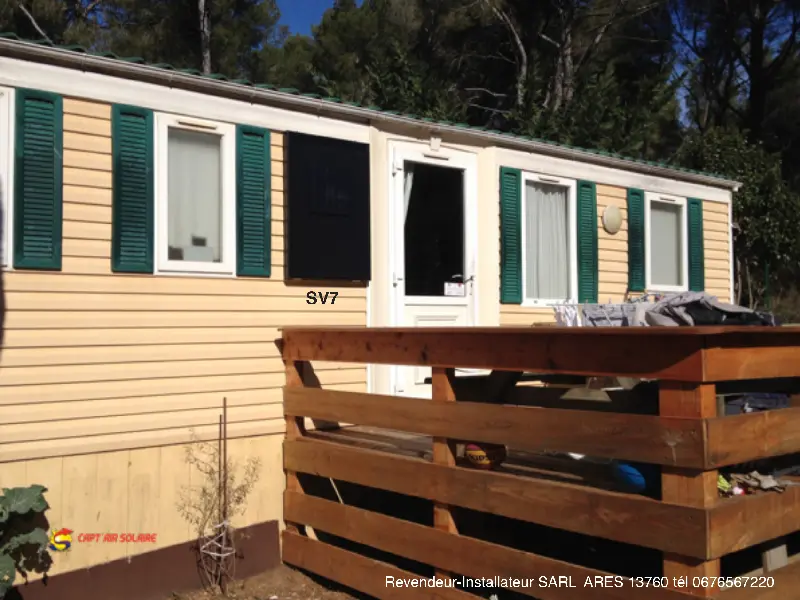

SOLARVENTI SV7
Your Capt’Air sent within 48 hours
Often used to ventilate, it can also temper a small volume.

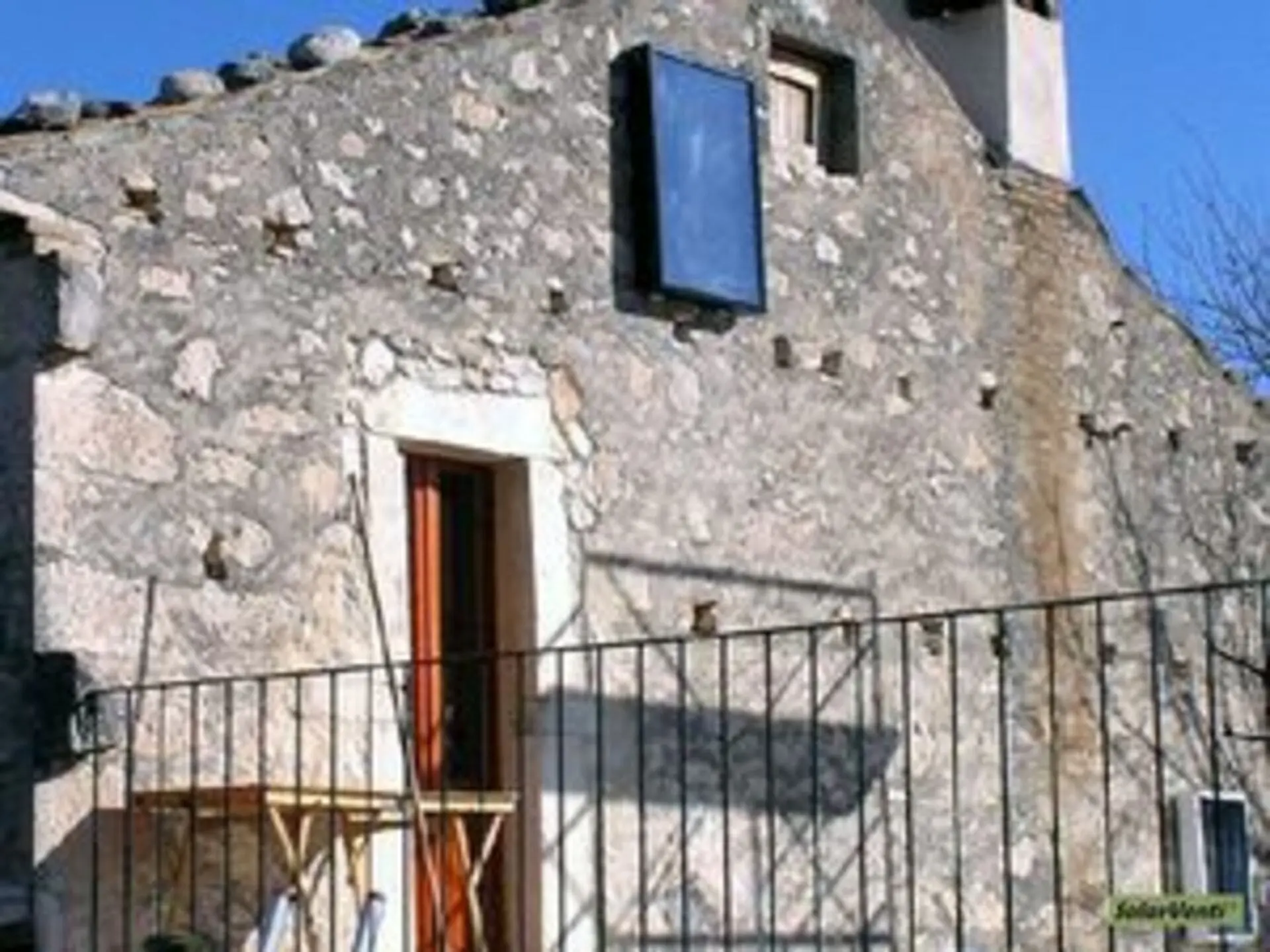

It will have to be installed as much as possible in the sun to provide the maximum of its capacities.
Characteristics
| FRAMEWORK | removable - natural aluminum or black or white option (Epoxy paint) |
| GLAZING | LEXAN polycarbonate treated against U.V. |
| FILTERED | black heat-absorbing felt on the entire back side self-cleaning retains particles > 4 microns |
| REAR SIDE | micro-perforated aluminum treated against marine corrosion 2500 perforations / m² for outside air intake |
| FAN | flow rate 40 to 90 m³ / h | diameter 125mm | soundproof 3.4W (powered by the integrated 12W photovoltaic cell) | insufflation mouth fitted with an anti-humidity disc (non-return valve effect) |
| POWER (approx.) | 500 W |
| ON OFF | regulation box (M/A + air flow adjustment + shut-off thermostat) or simple M/A switch |
| WEIGHT | 9,5 Kg |
| DIMENSIONS in cm | standard 102 x 70 x 5.5 made to measure maxi 102 x 70 |
| OUTLET TEMPERATURE | 18° C to 35° C approximately depending on orientation / sunshine |
| PRIORITY OF USE | ventilation |

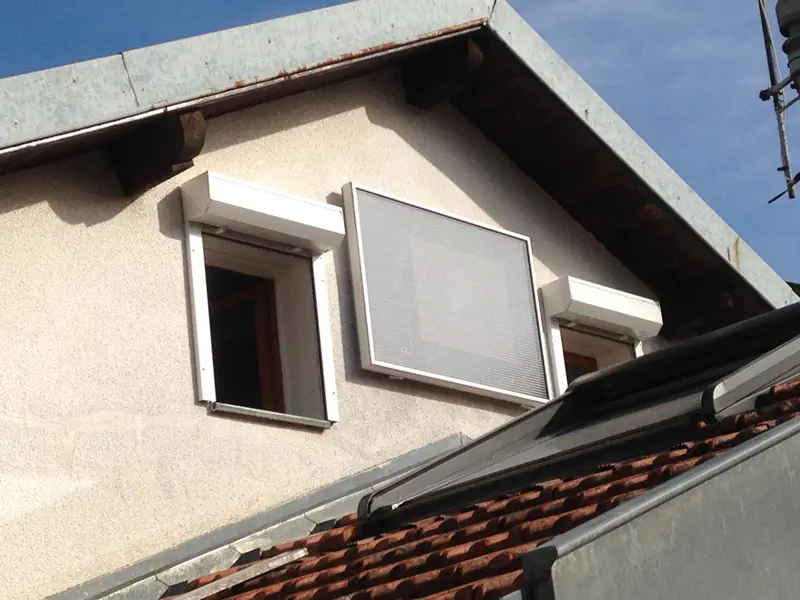

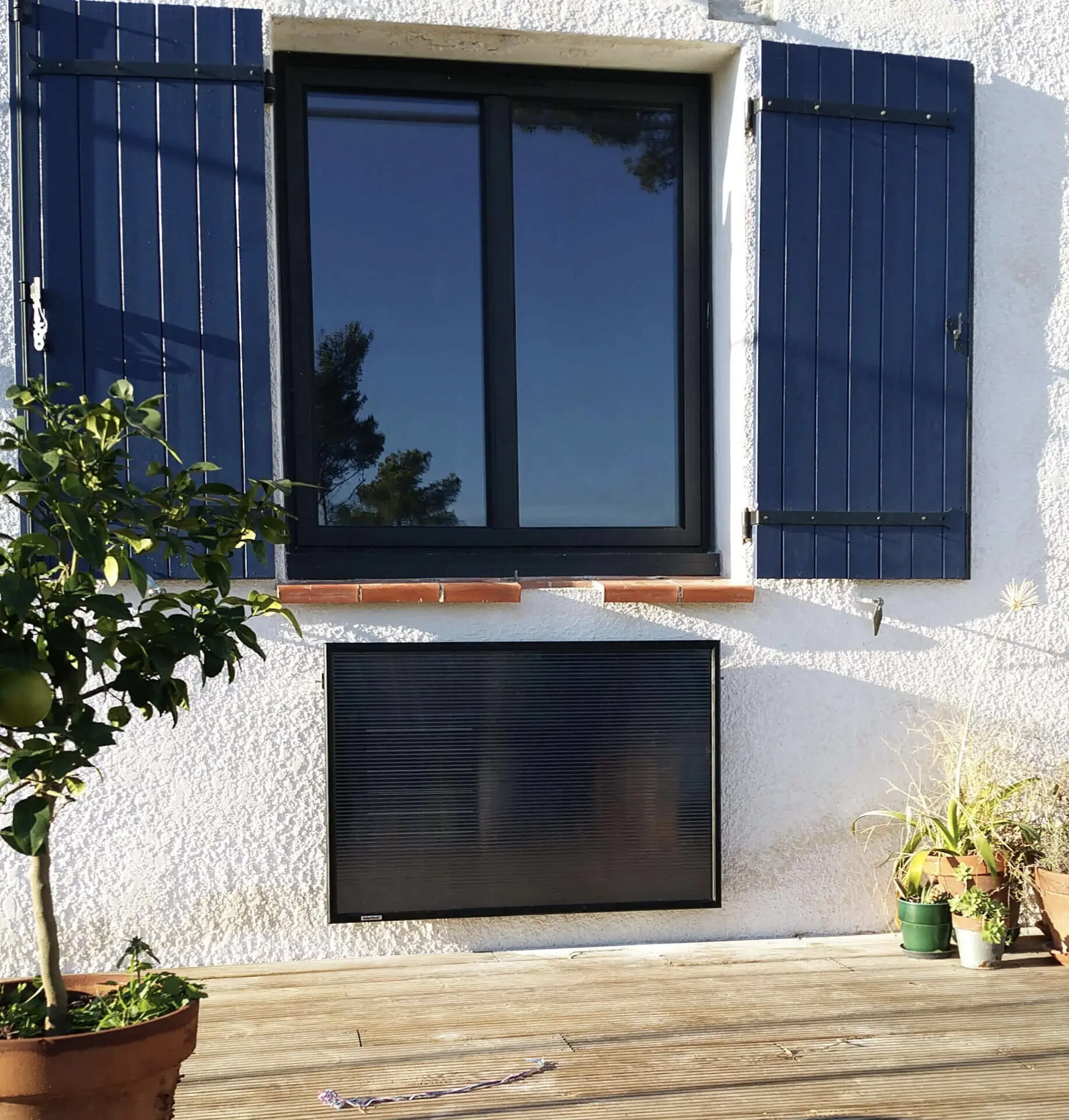

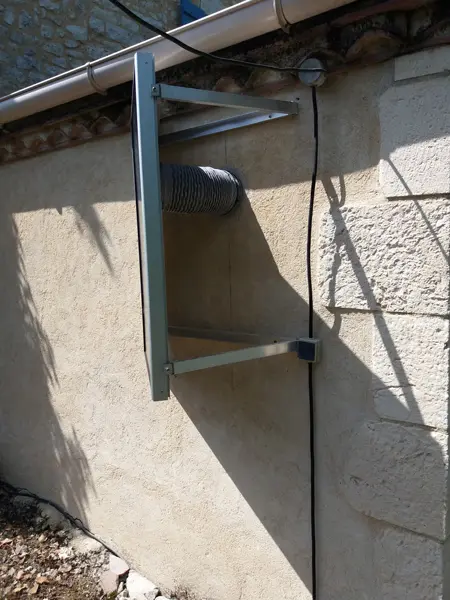

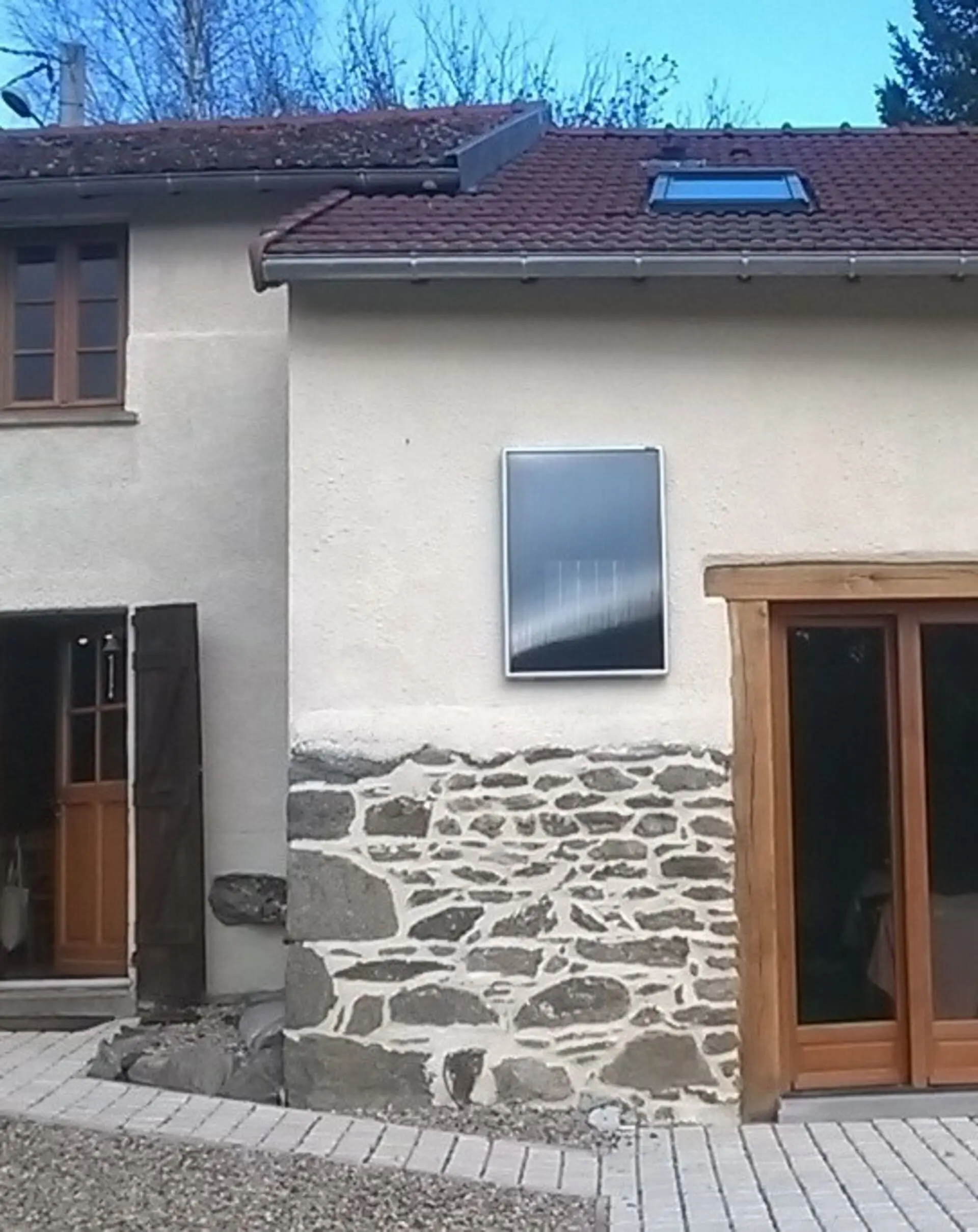

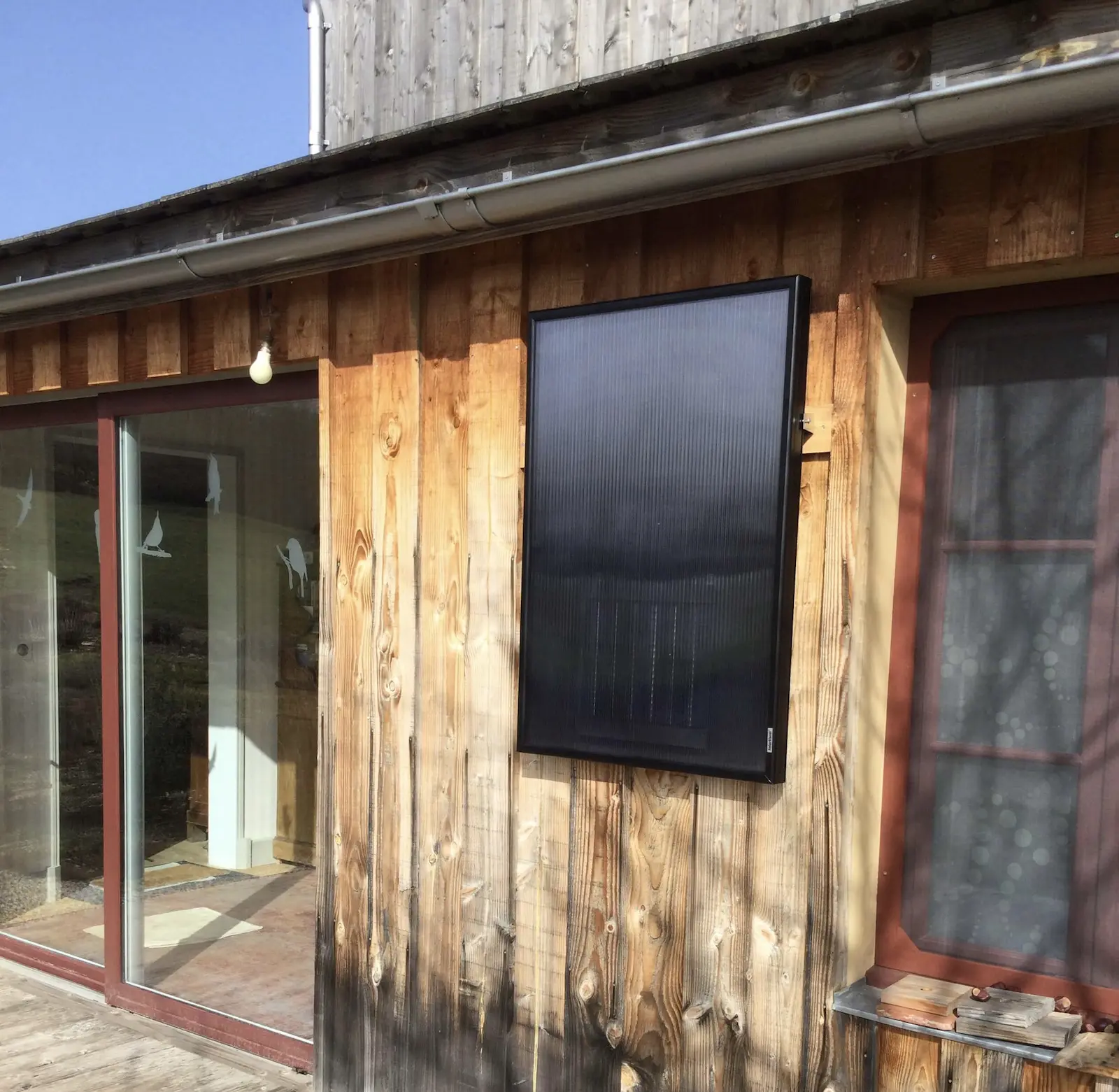

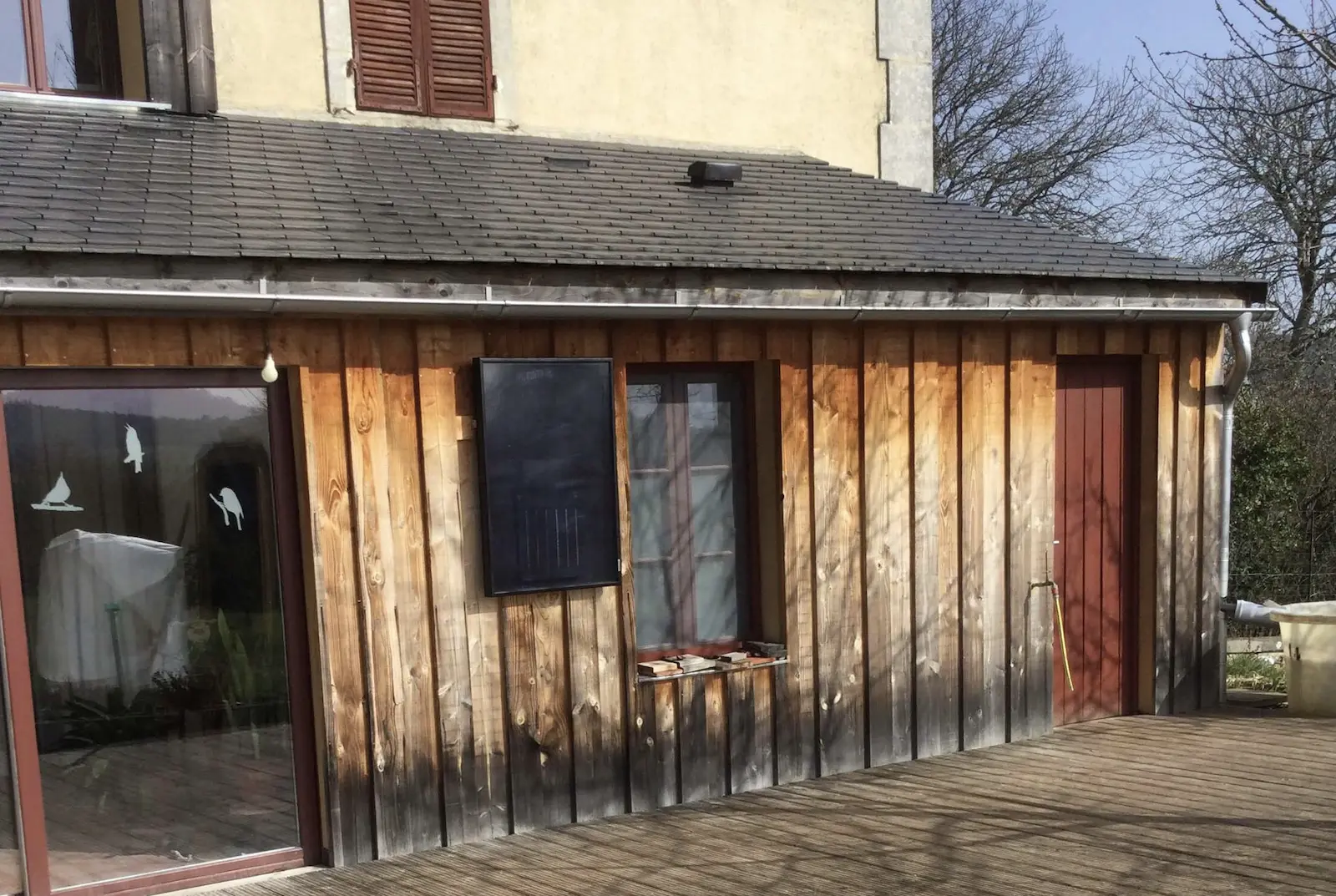

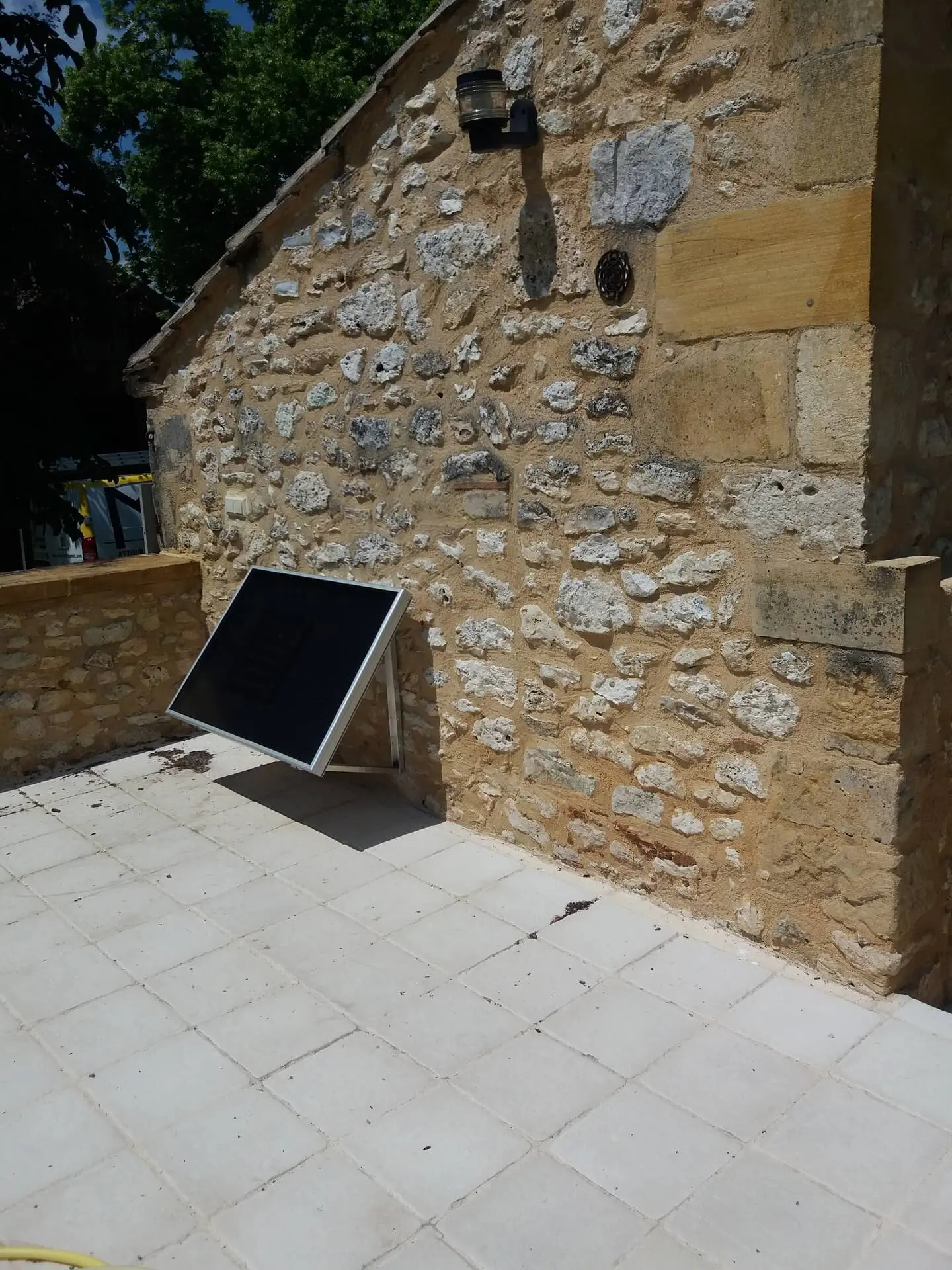

| FACILITY | >> ON THE WALL: horizontal or vertical position or at an angle with our angle kit | >> ON THE ROOF: with our roof kit |
