Your Capt’Air sent within 48 hours
This “solar wall” will blow air heated by the sun between 30 and 60°C approximately in the intermediate season.
This heat will always remain free while the price of all other traditional energies increases!
You’ll realize substantial heating savings for years with no operating or maintenance expenses (and no taxes).
Details and installation options
This model holds twice the air volume of the SV20 model (2cm deeper frame and 50% more sun exposure).
With a Y, distribute the heat in two directions, provide a second insufflation mouth.
We can provide you with a booster fan if the length of the heat-conducting duct is more than 5m.
An empty solar box of the same size can be used to preheat the air at the inlet of a dual flow CMV.
FRAMEWORK | removable - natural aluminum or black or white option (Epoxy paint) |
GLAZING | LEXAN polycarbonate treated against U.V. |
FILTERED | black heat-absorbing felt on the entire back side, self-cleaning, retains particles > 4 microns |
REAR SIDE | micro-perforated aluminum with marine anti-corrosion treatment, 2500 perforations / m² for outside air intake |
FAN FLOW | 150 to 200 m³/h |
FAN | diameter: 125mm | soundproof | 5.1W (powered by the built-in 18W photovoltaic cell) | insufflation mouth fitted with an anti-humidity disc (non-return valve effect) |
POWER (approx.) | 2400 W |
ON / OFF | regulation box (M/A + air flow adjustment + shut-off thermostat) |
WEIGHT | 29,1 Kg |
DIMENSIONS in cm | standard 300 x 102 x 7.5 | made to measure max 300 x 102 |
OUTLET TEMPERATURE | 18° C to 60° C approximately depending on orientation / sunshine |
HUMID AIR EXTRACTION | optional kit (exhaust fan connected to collector) |
PRIORITY OF USE | heat +++ |

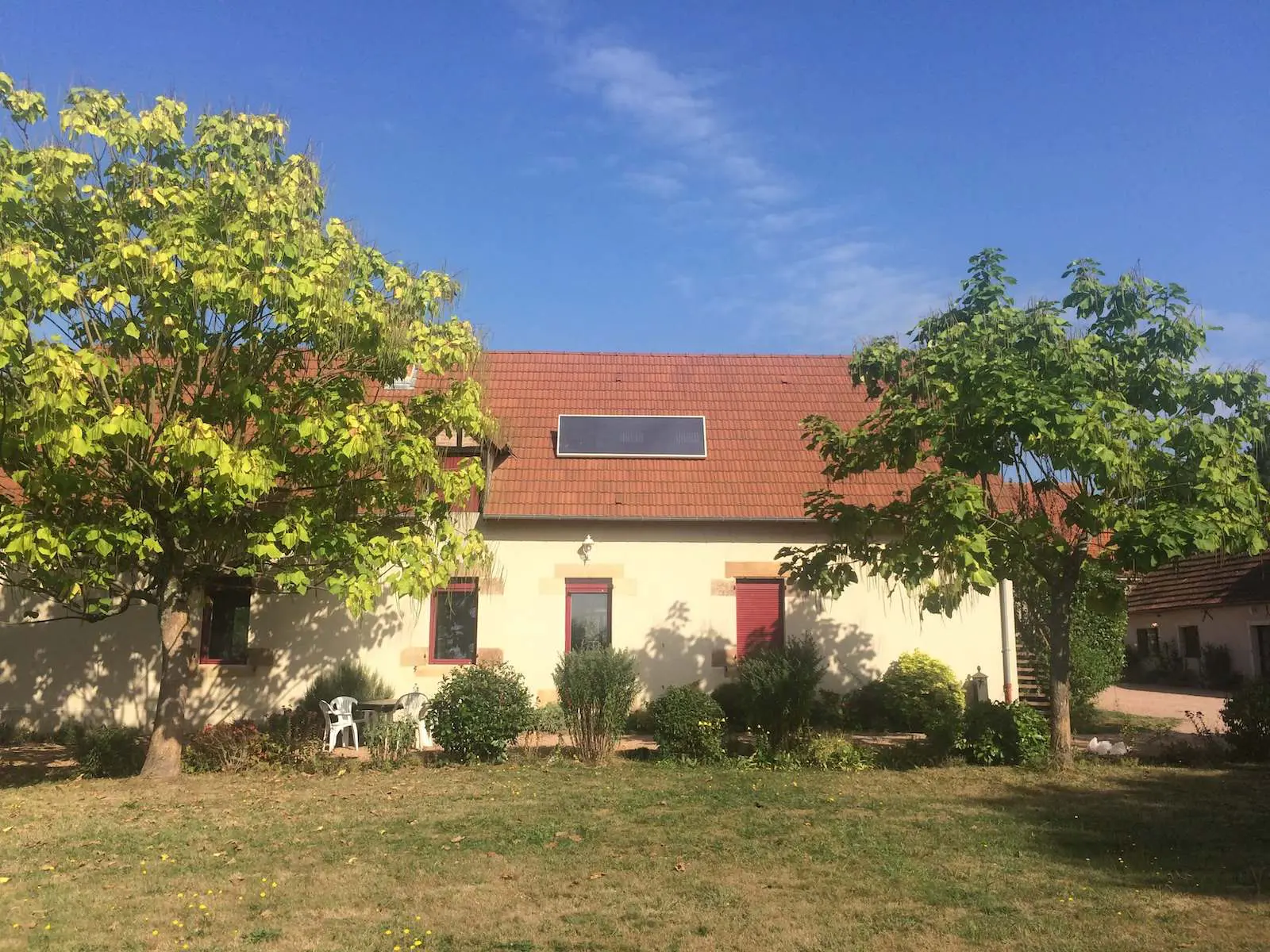

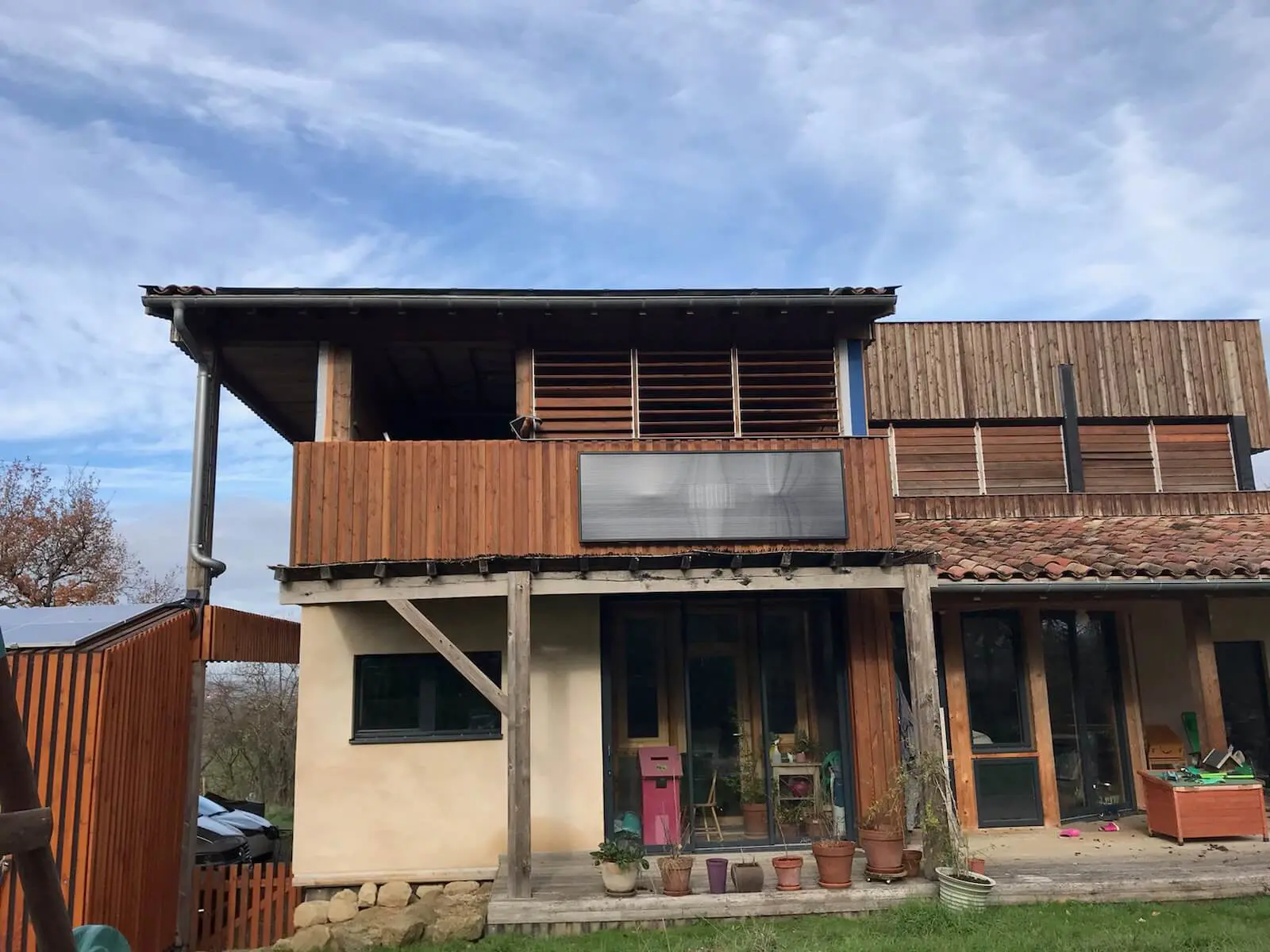

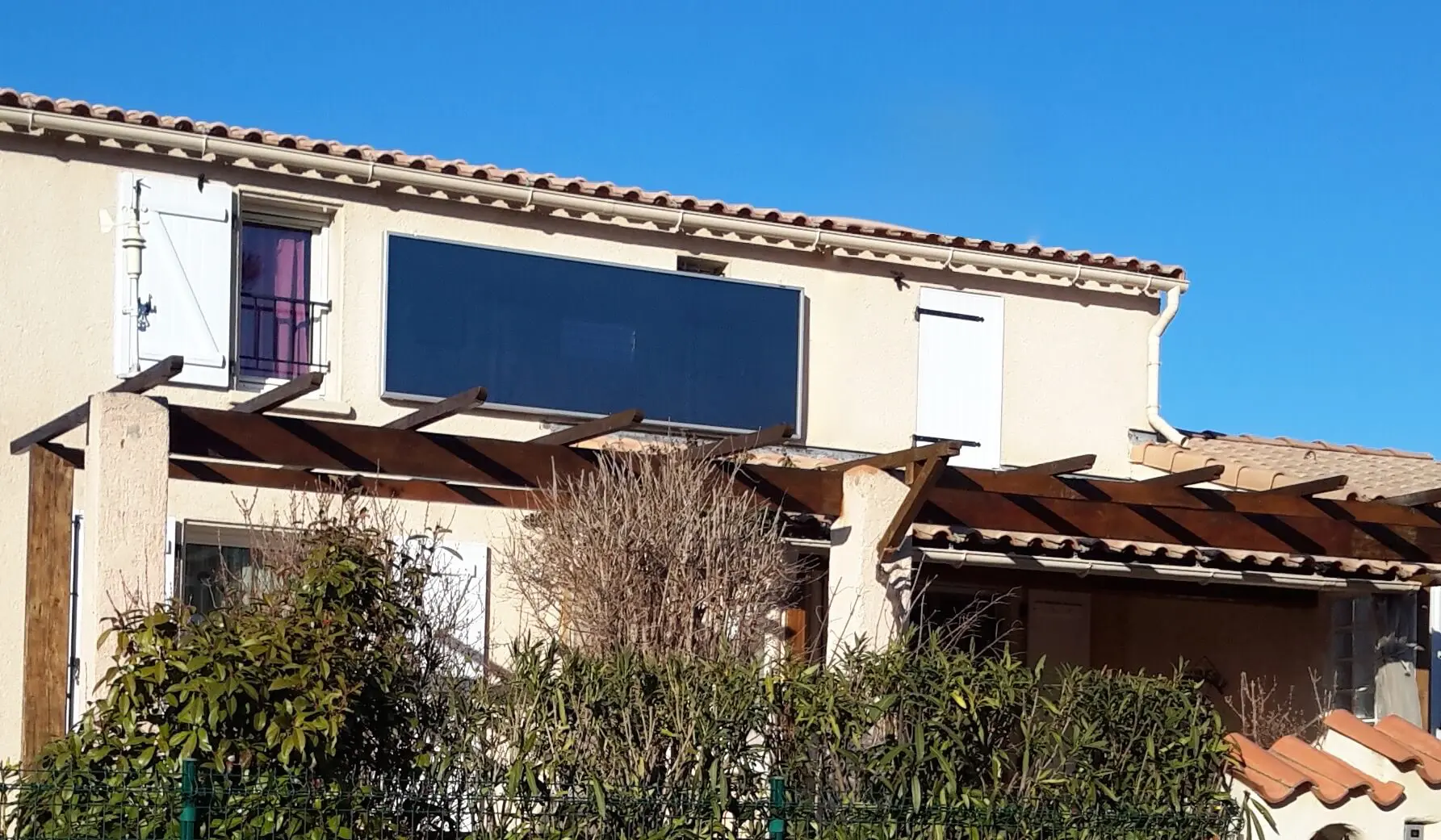

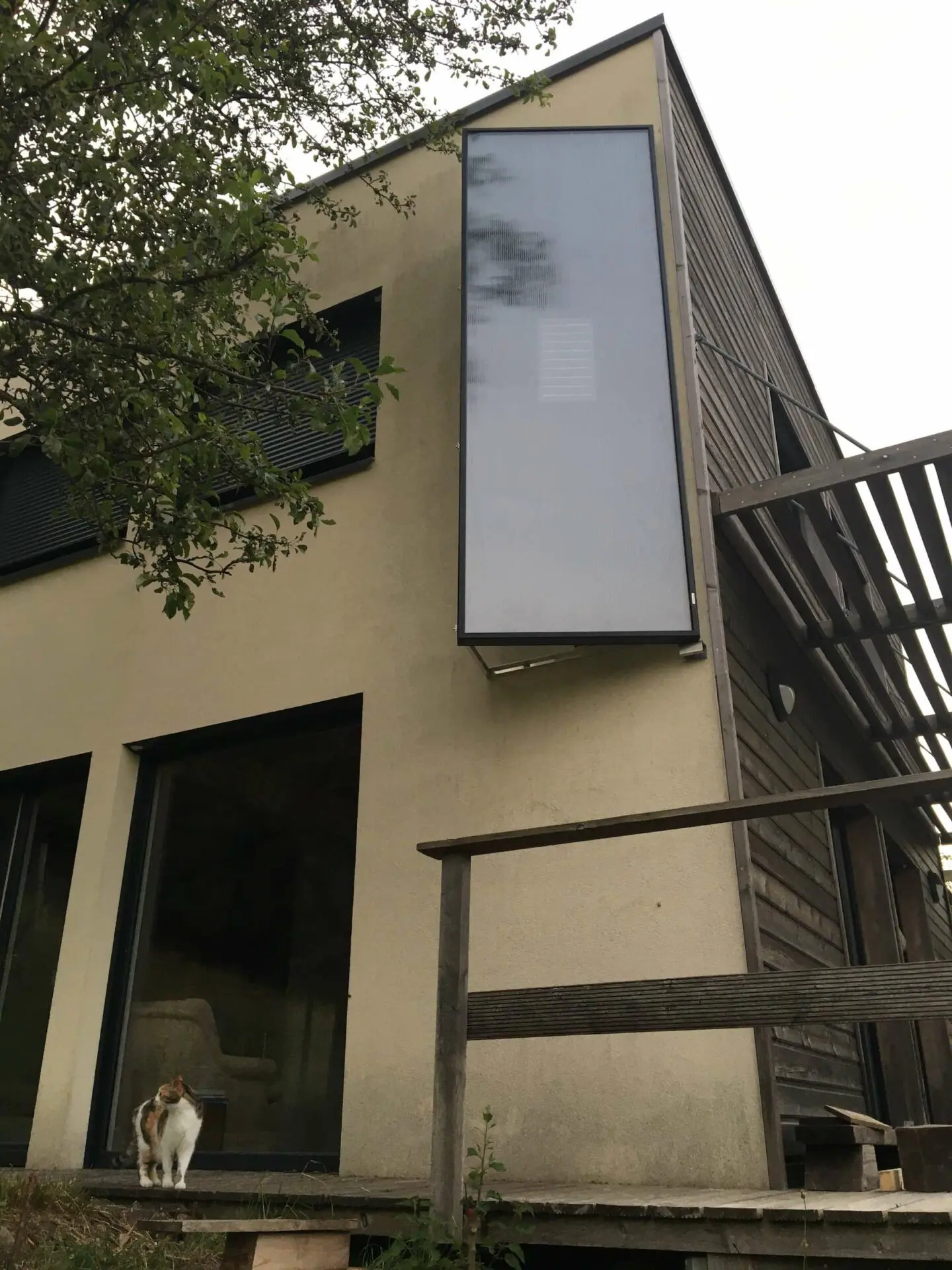

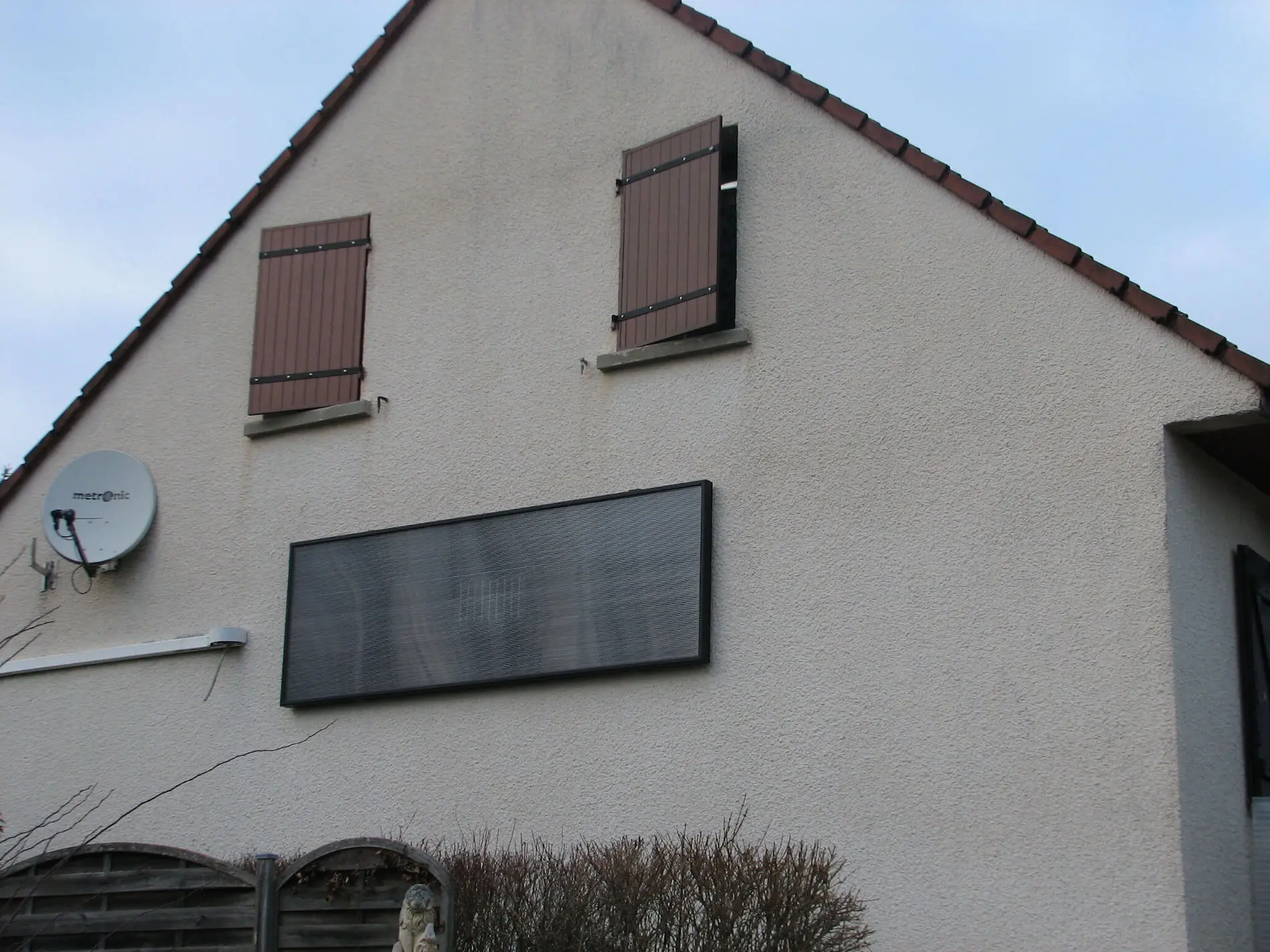

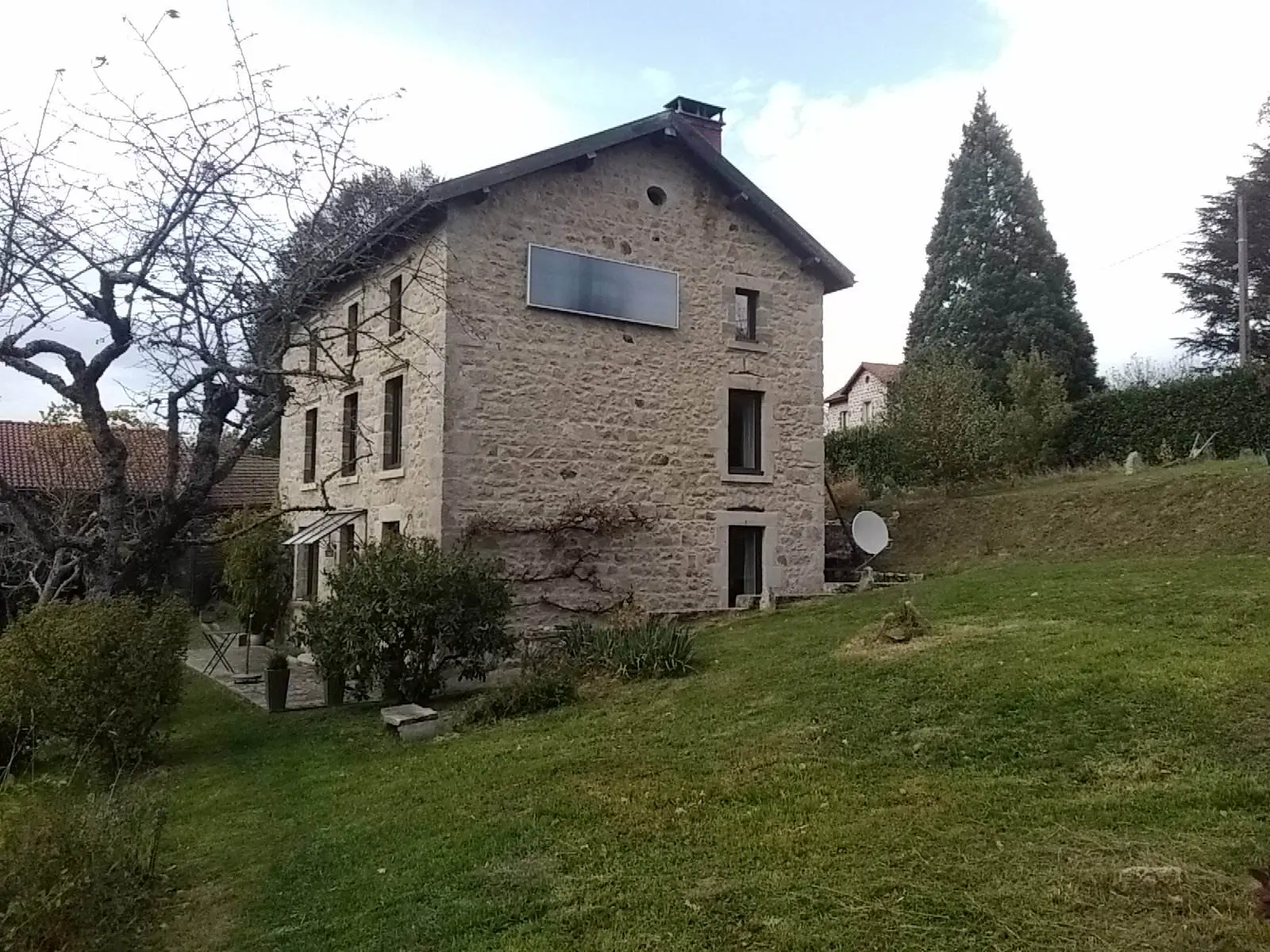

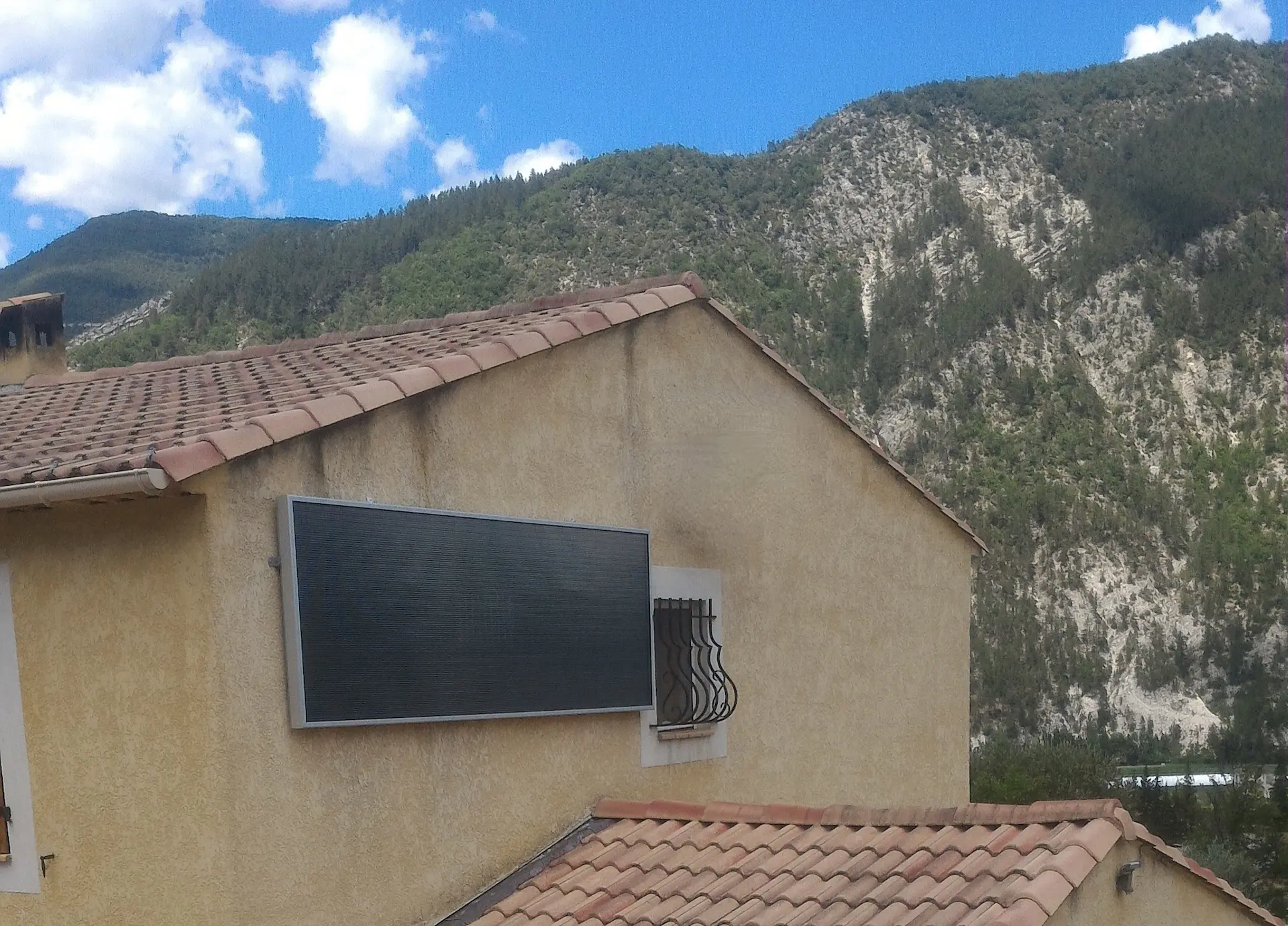

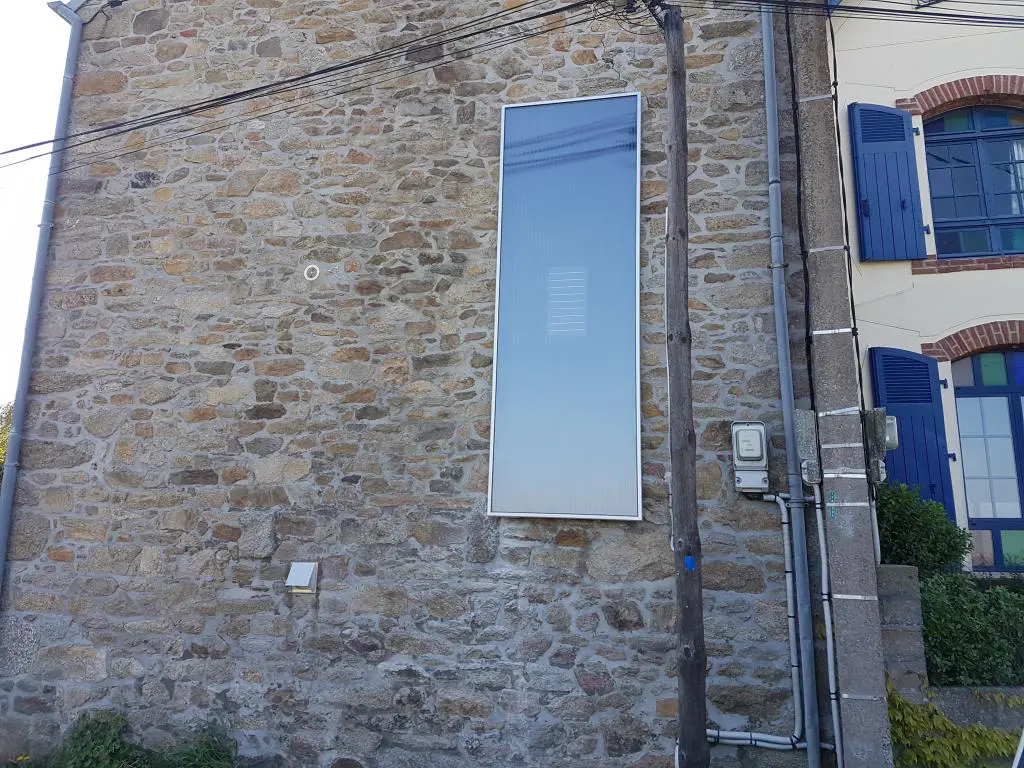

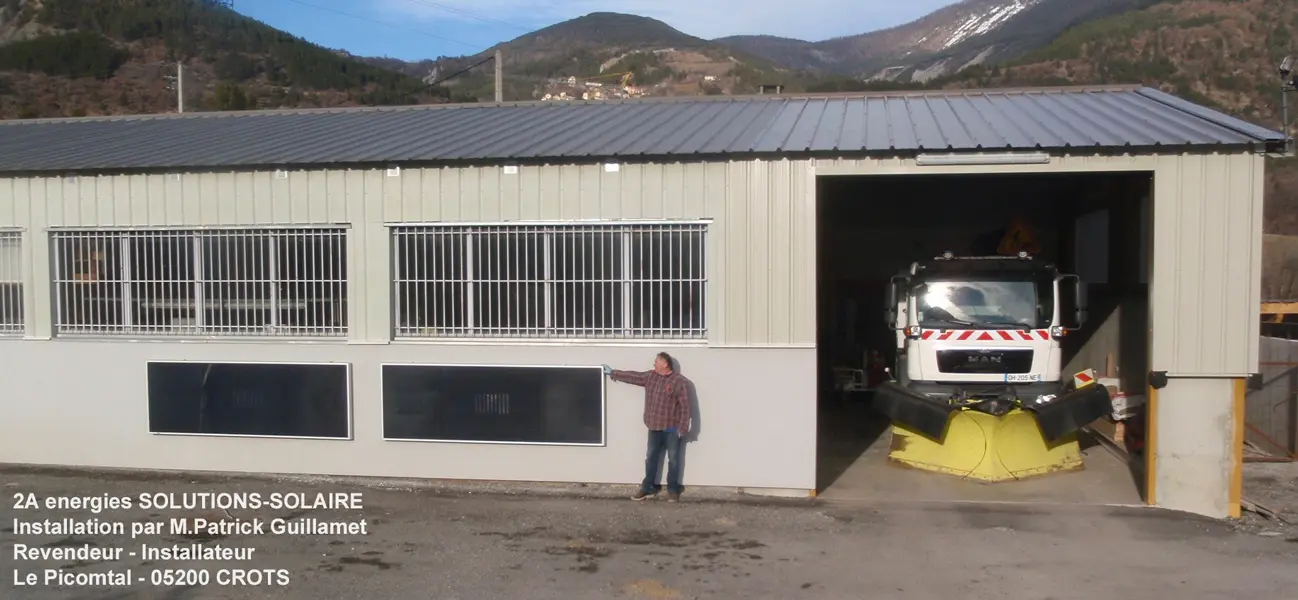

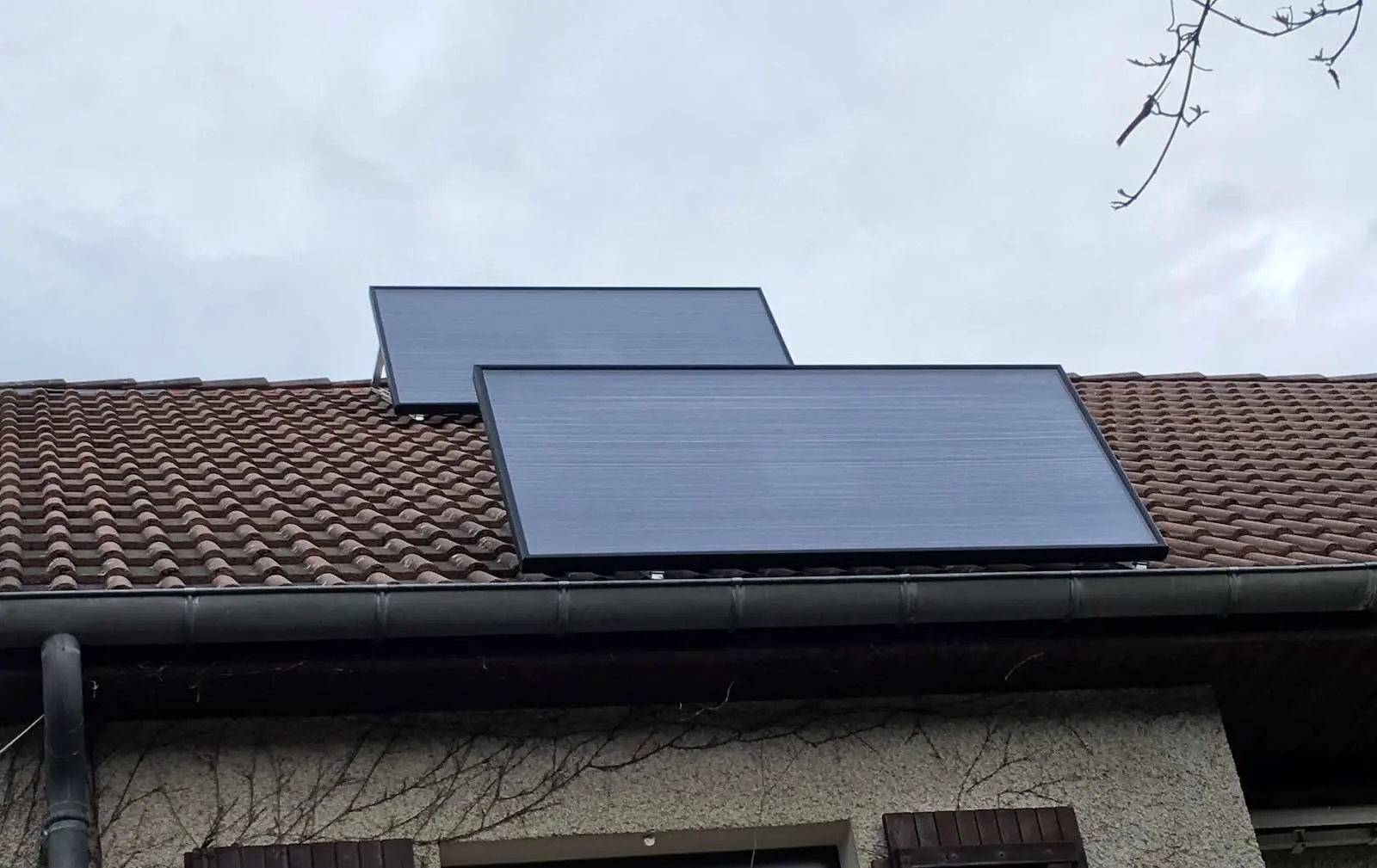

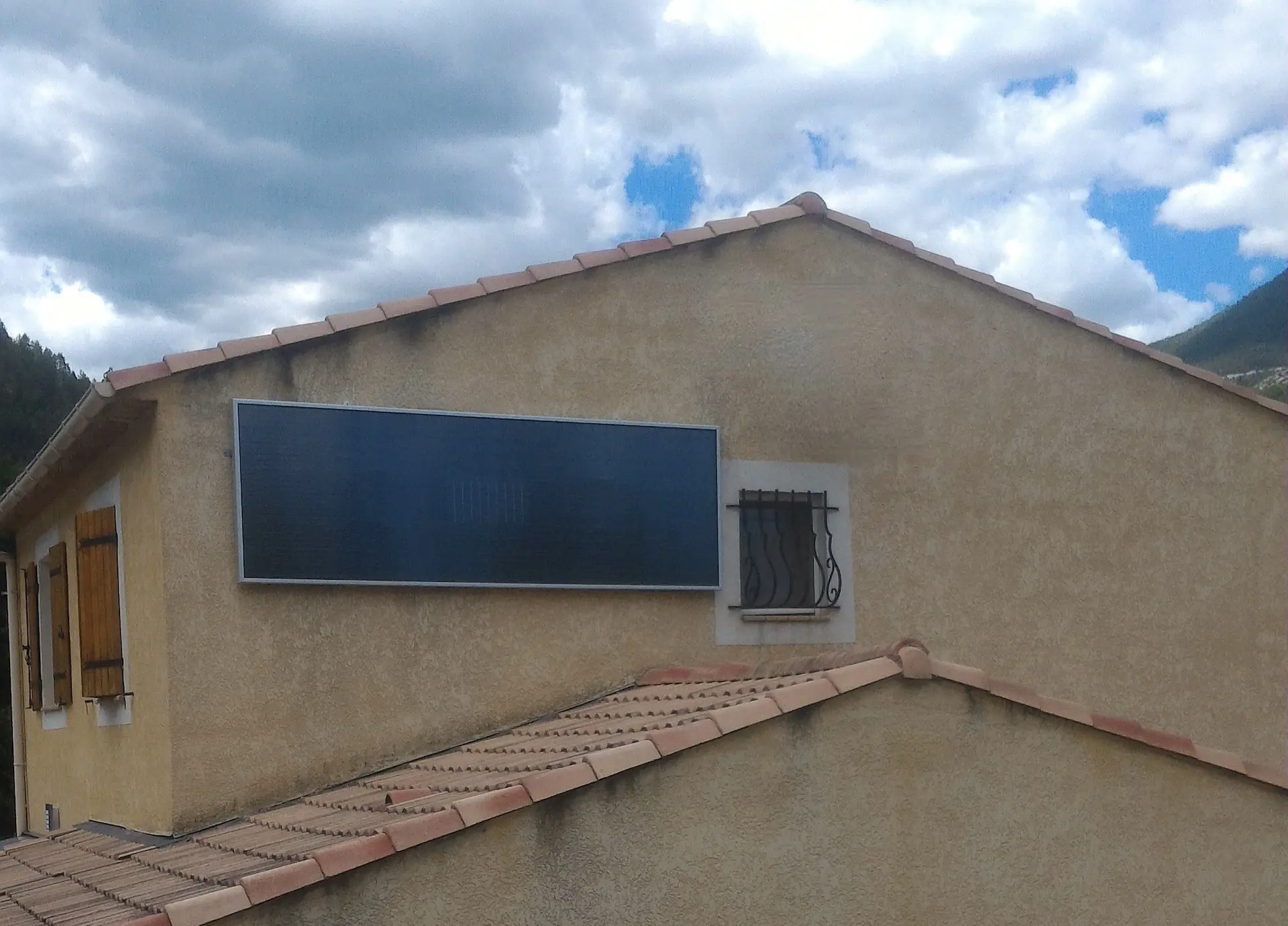

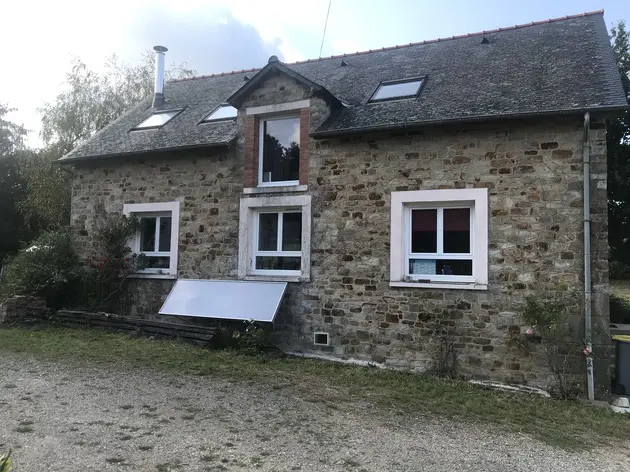

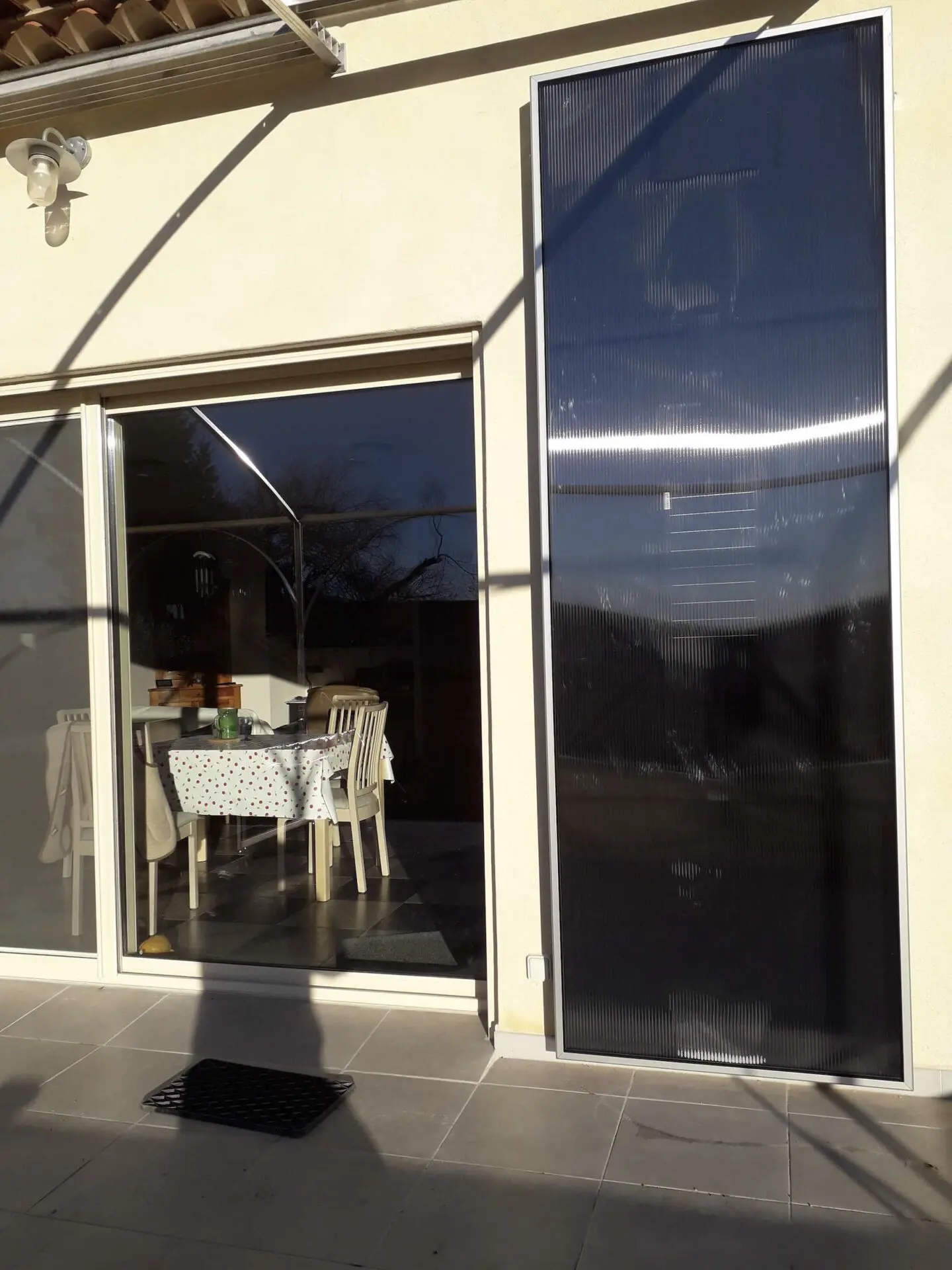

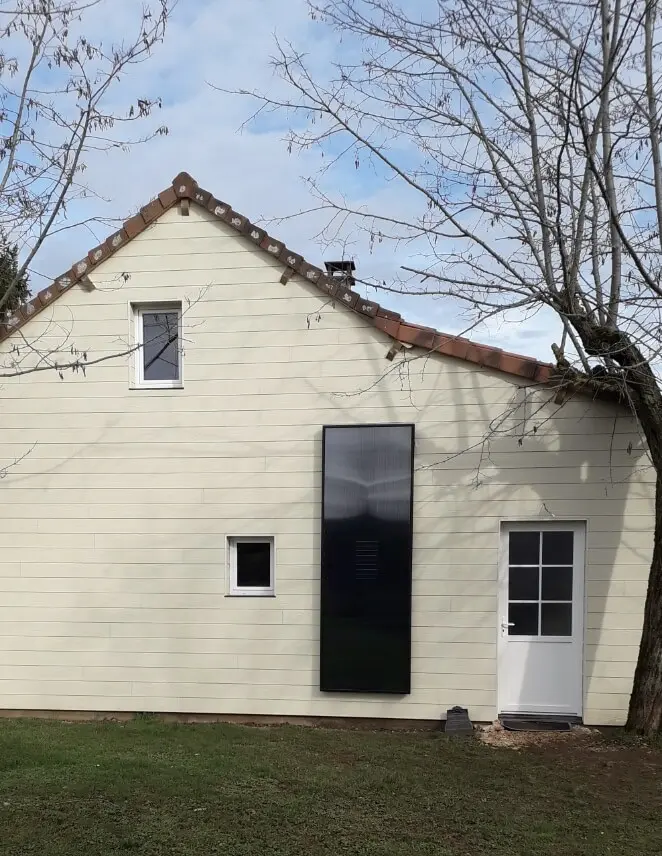

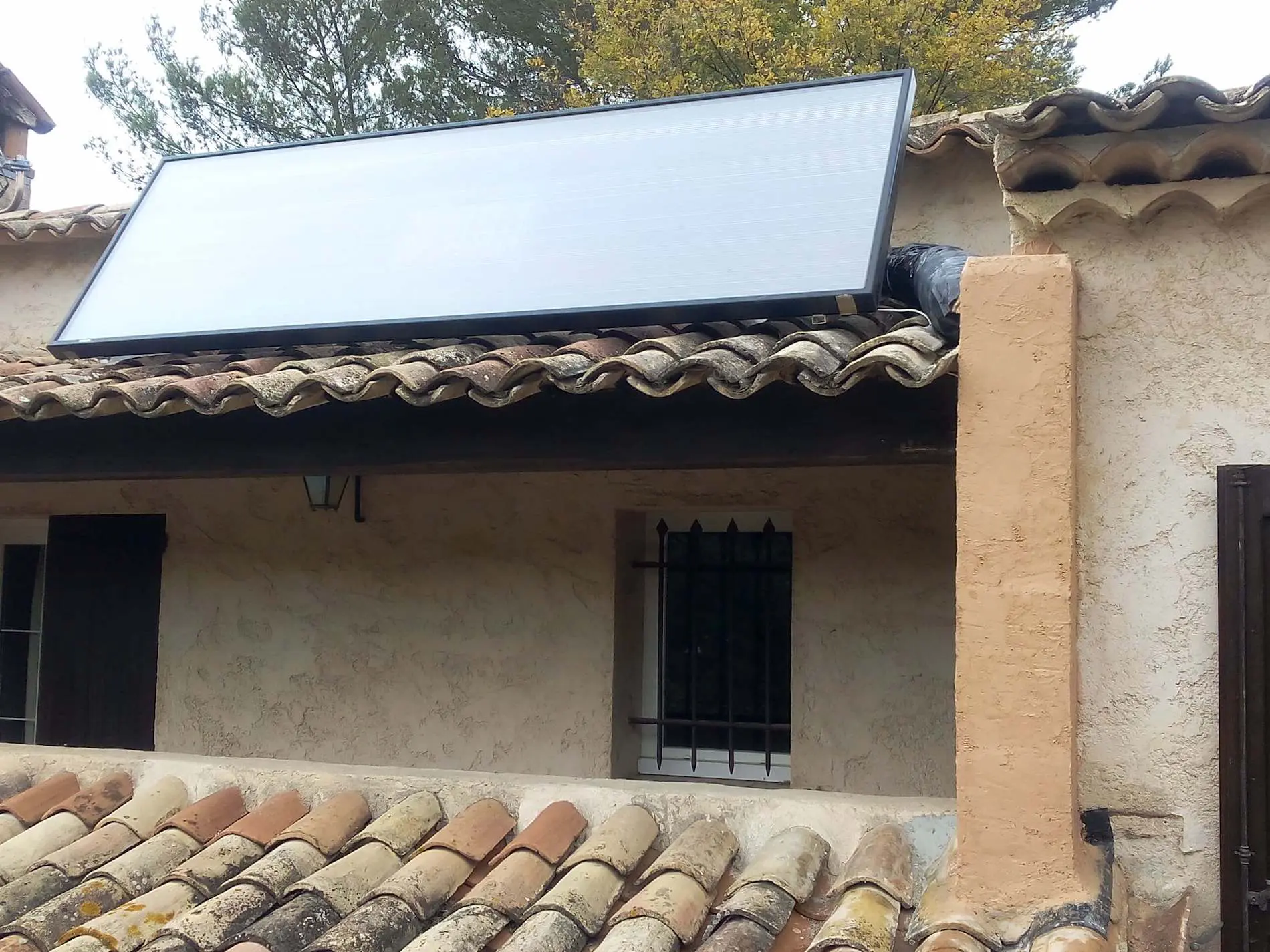

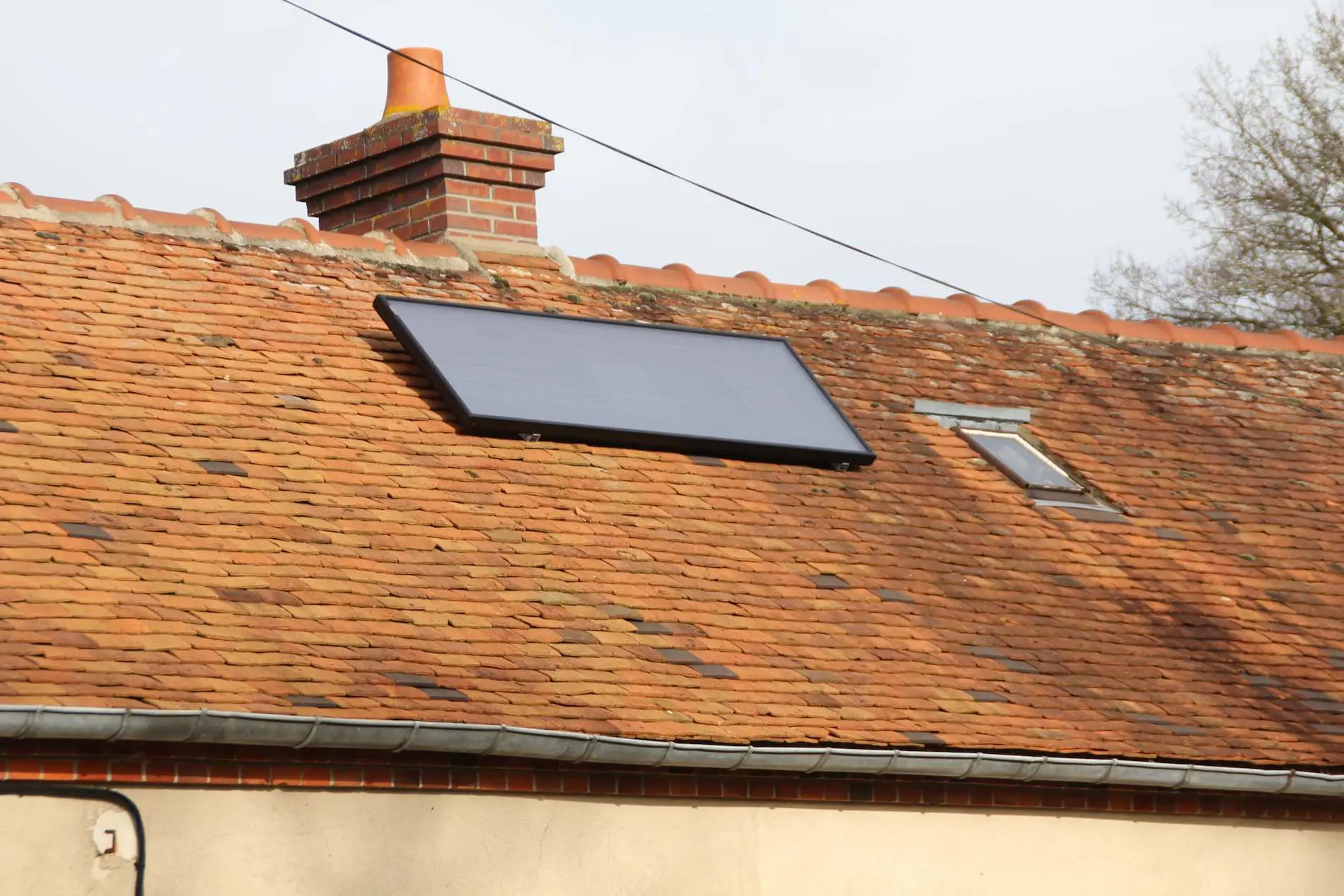

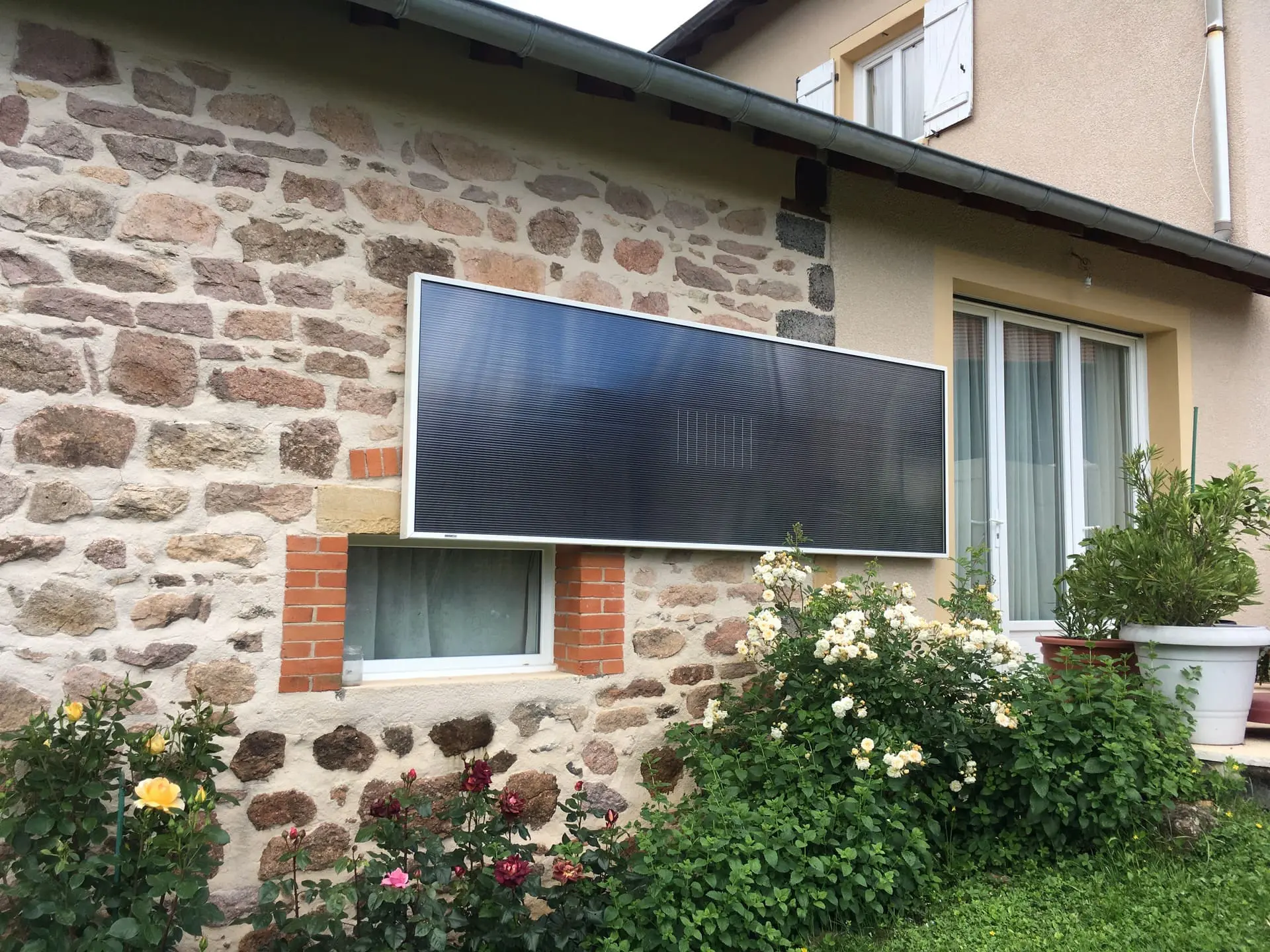

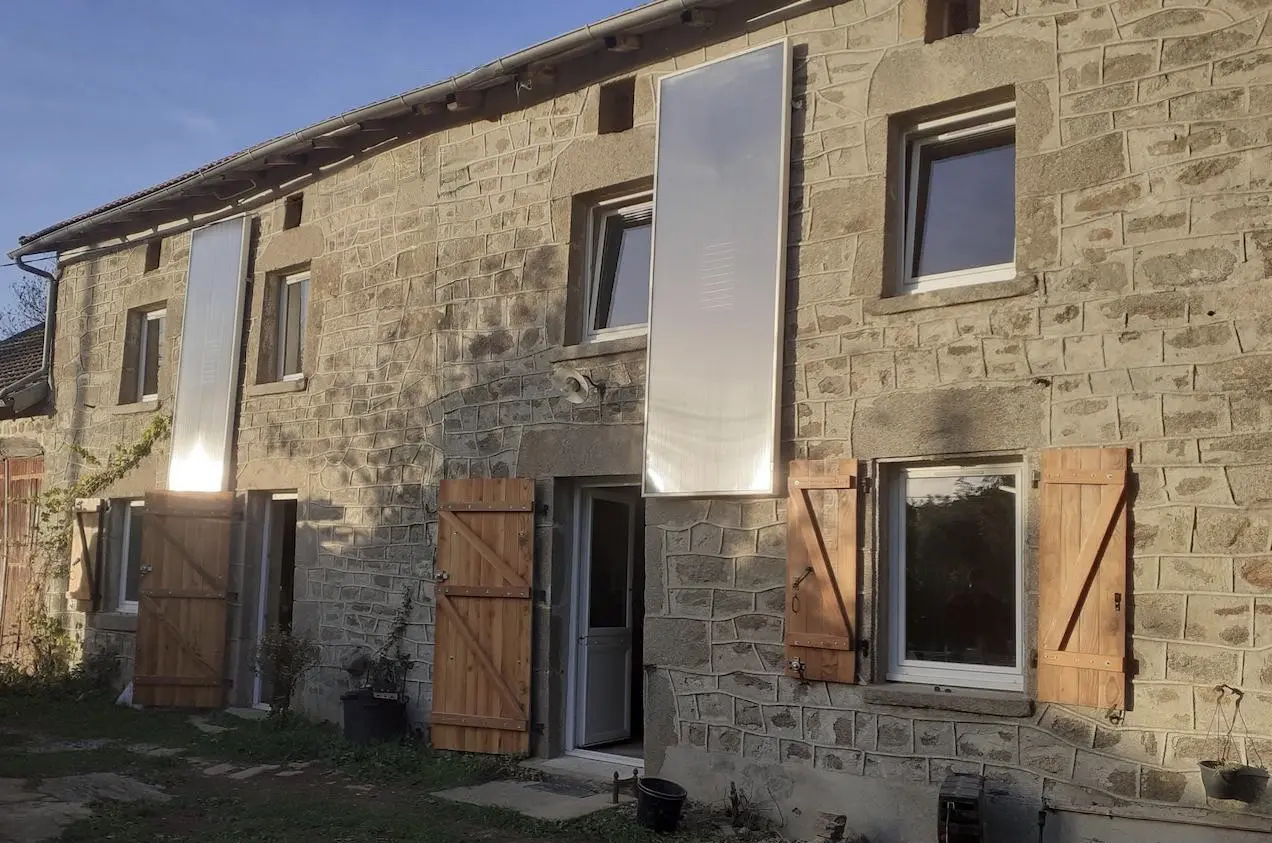

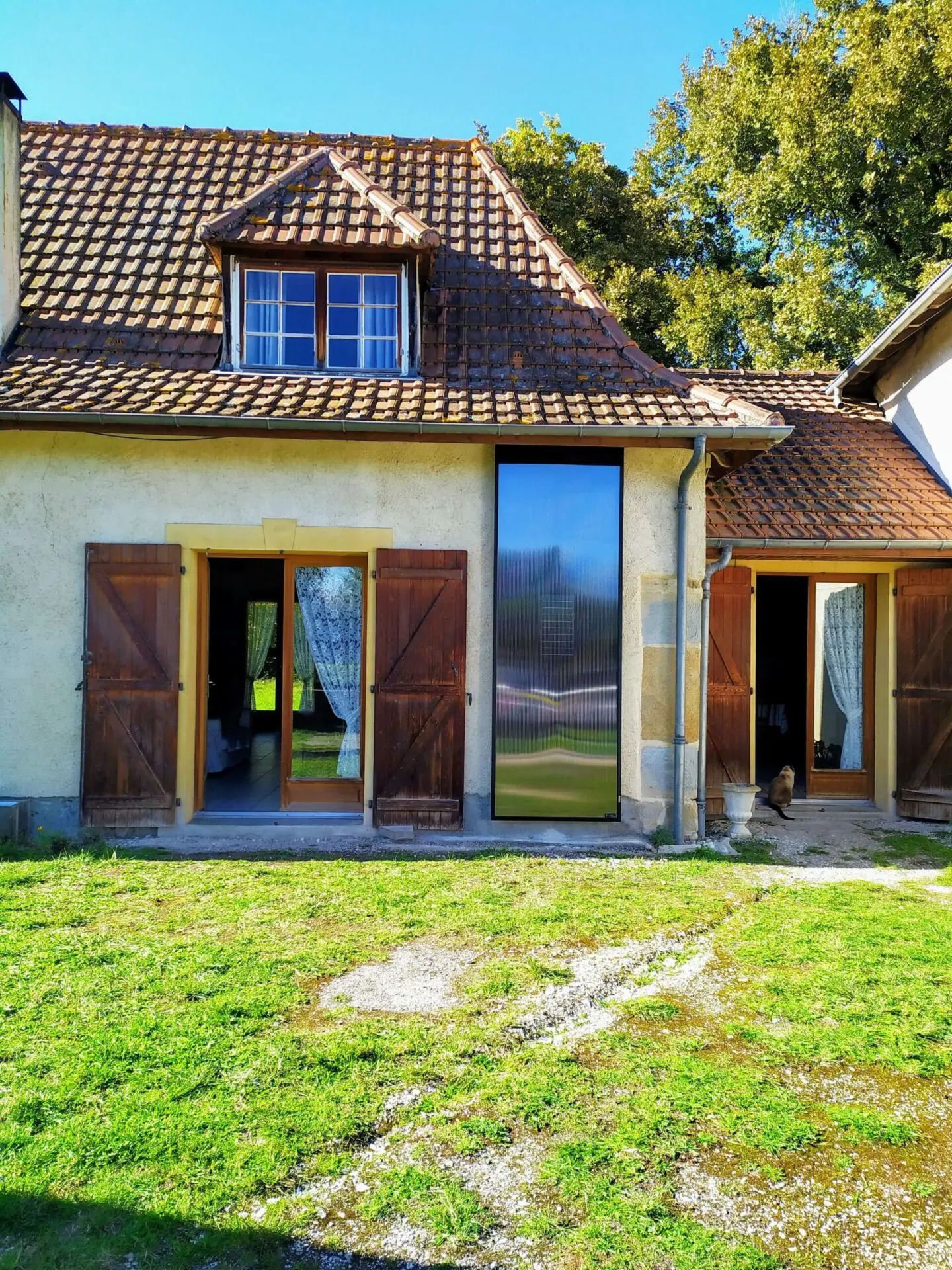

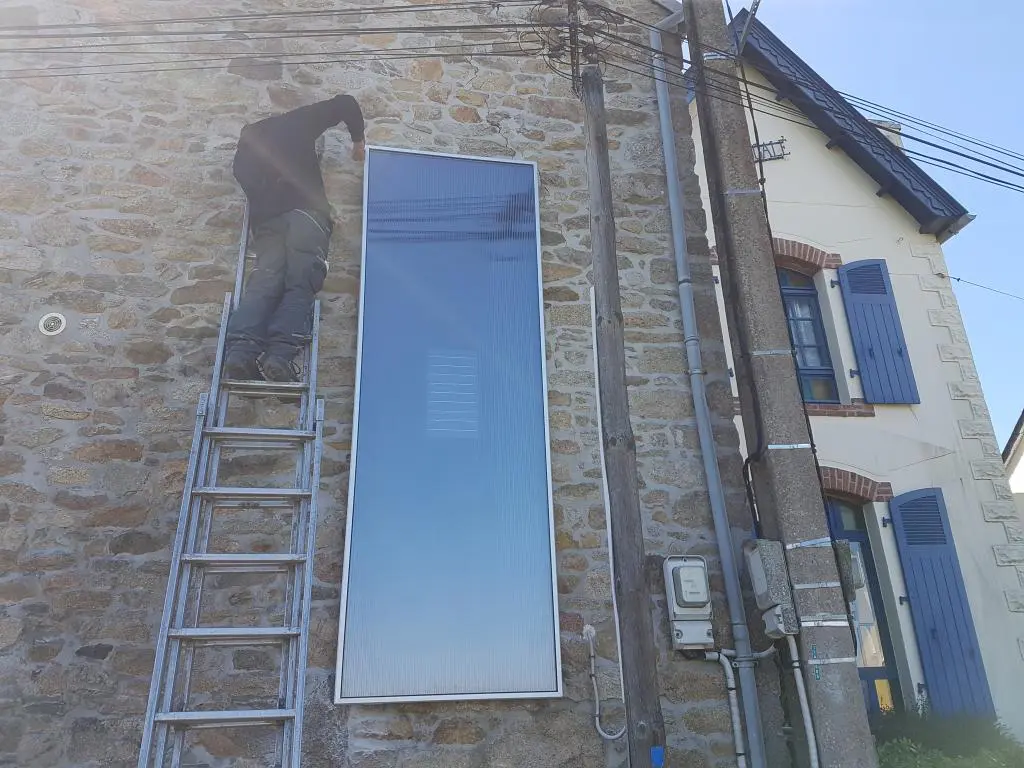

FACILITY | >> ON THE WALL: horizontal or vertical position or at an angle with our angle kit | >> ON THE ROOF: with our roof kit |
