SOLARVENTI SV3

Your Capt’Air sent within 48 hours

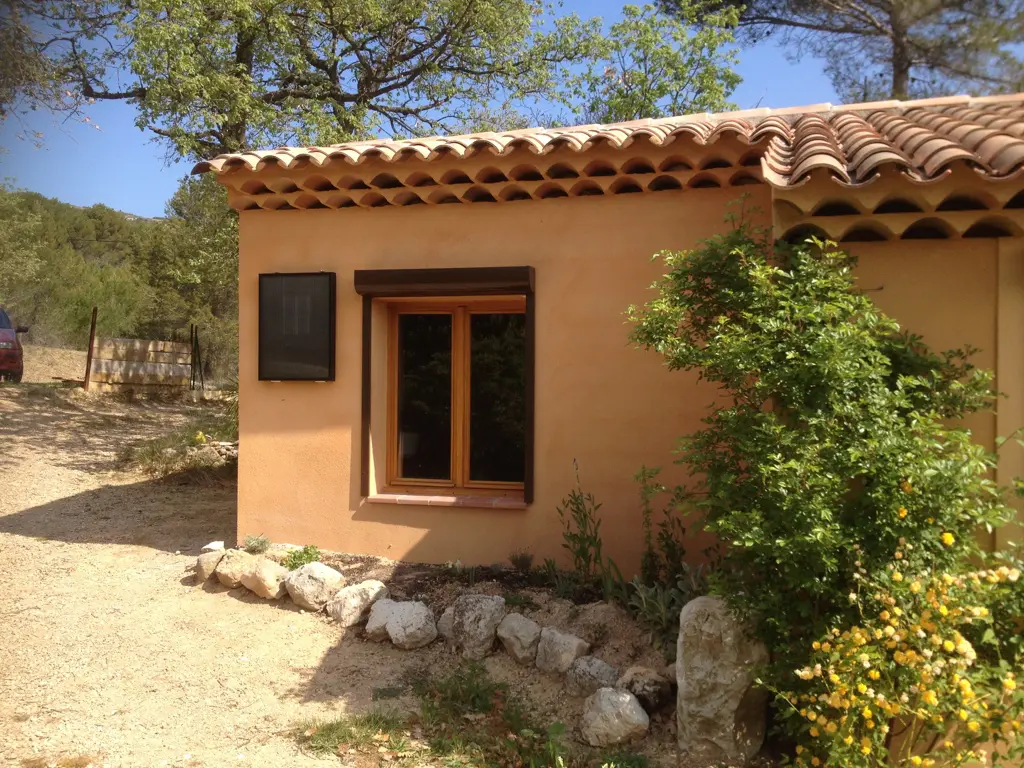

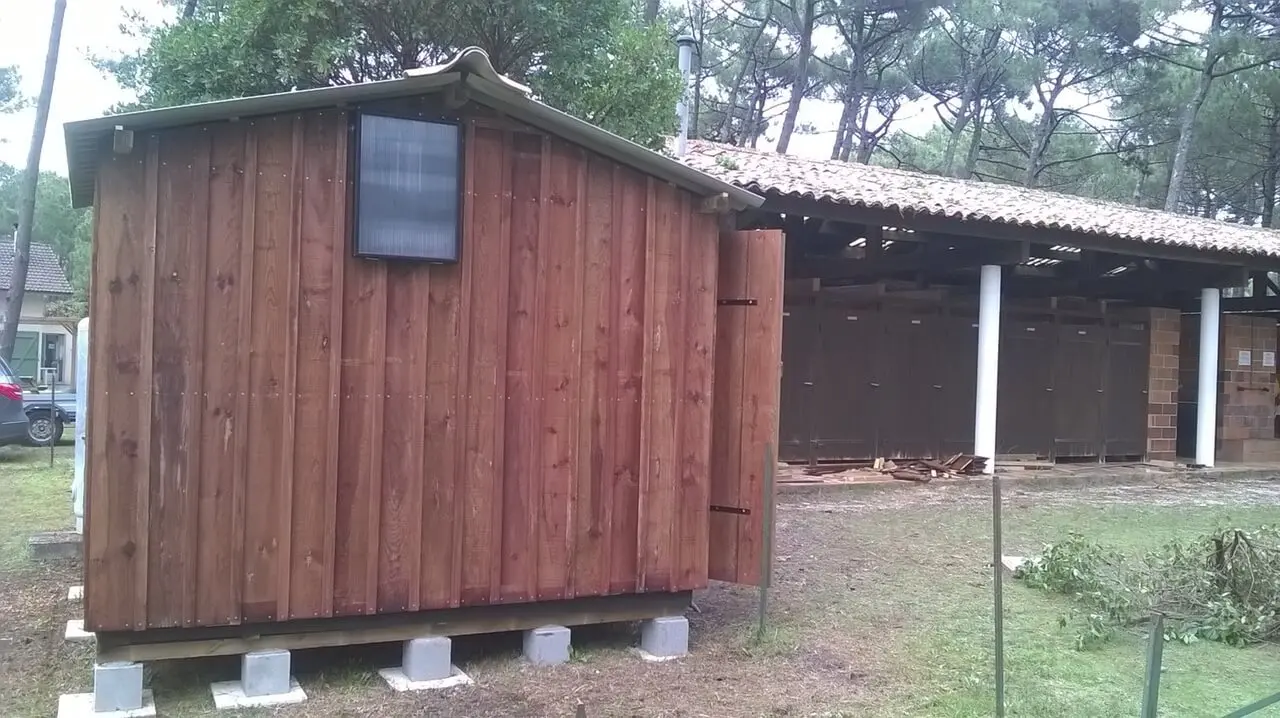

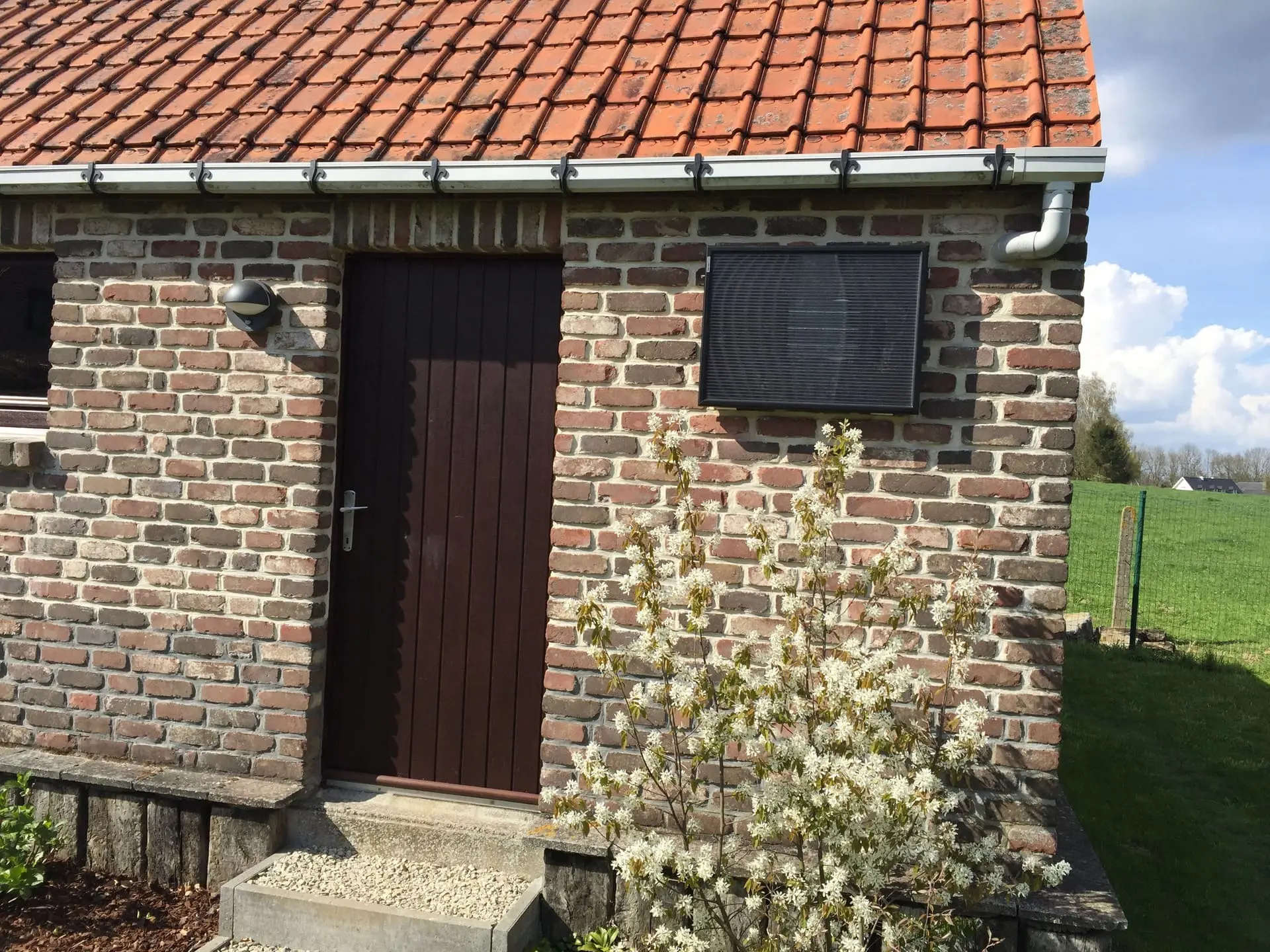

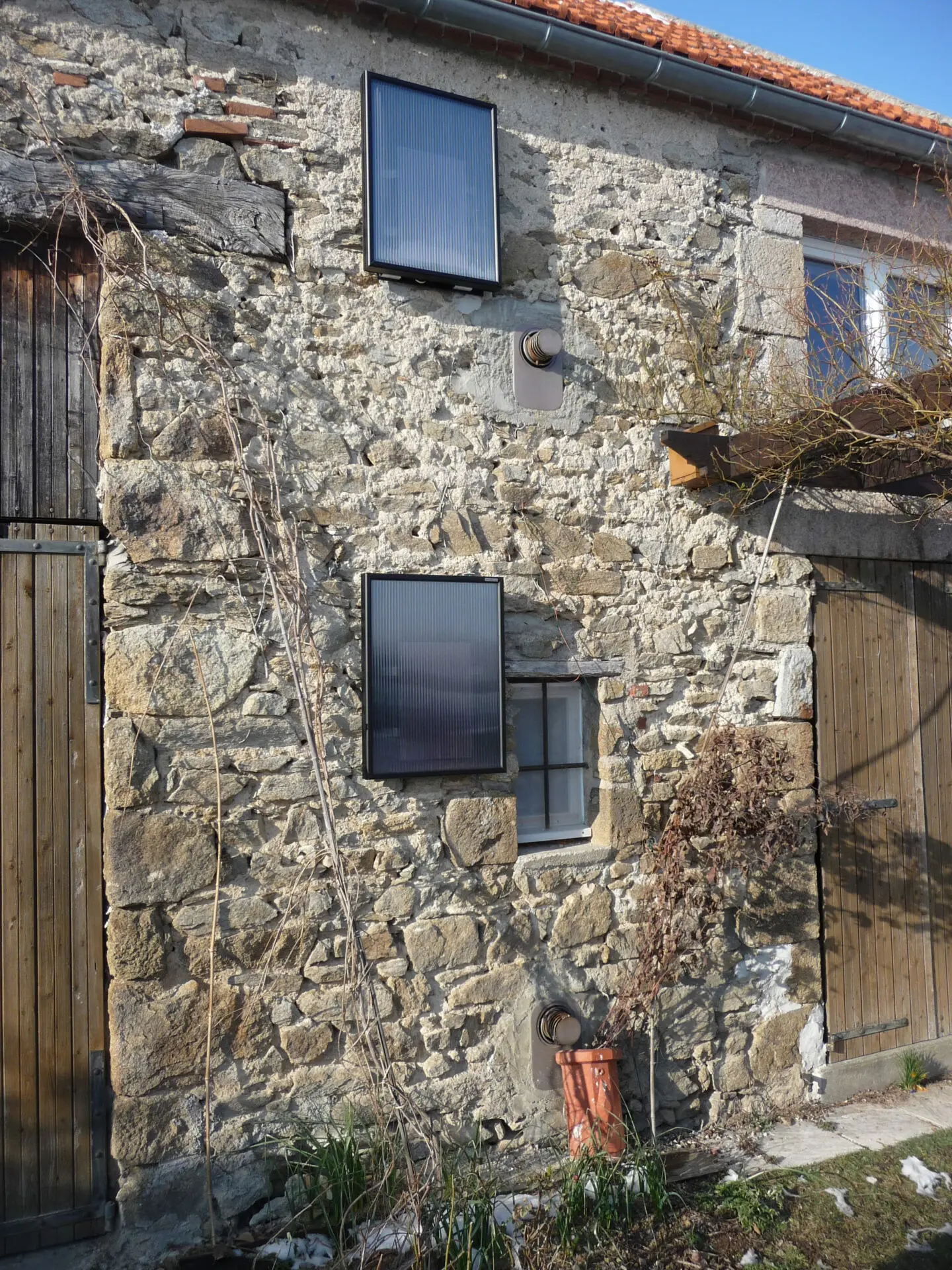

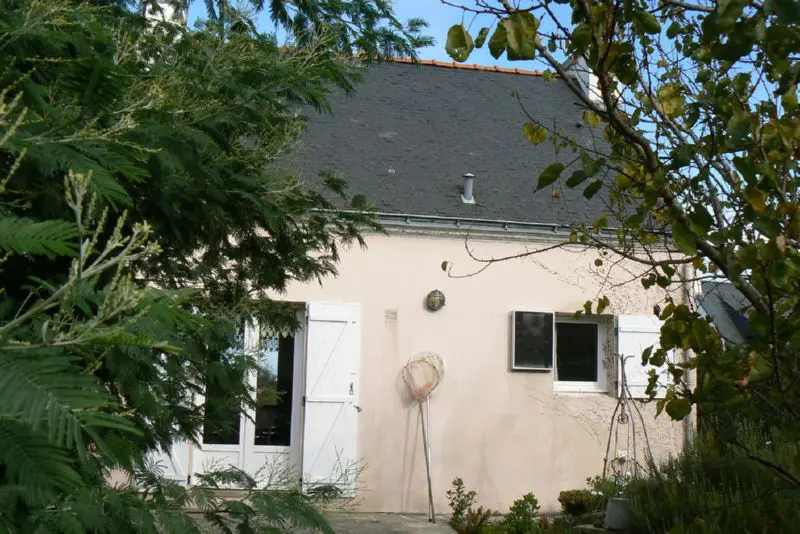

Installed on a wall, delivered with a simple M/A switch.

Mainly used to ventilate small volumes.

In very sunny areas, it can comfort a living room with a supply of heated air limited by performance.

A regulation box can be installed instead of the simple ON/OFF switch.

Characteristics

FRAMEWORK	removable - natural aluminum or black or white option (Epoxy paint)
GLAZING	LEXAN polycarbonate treated against U.V.
FILTERED	black heat-absorbing felt on the entire back side self-cleaning retains particles > 4 microns
REAR SIDE	micro-perforated aluminum treated against marine corrosion 2500 perforations / m² for outside air intake
FAN	flow rate 20 to 35 m³ / h \| diameter 125mm \| soundproof 3.4 W (powered by the integrated 6W photovoltaic cell) \| insufflation mouth fitted with an anti-humidity disc (non-return valve effect)
POWER (approx.)	250 W
ON OFF	single on/off switch
WEIGHT	5,5 Kg
DIMENSIONS in cm	standard 70 x 51.5 x 5.5 made to measure maxi 70 x 51.5
OUTLET TEMPERATURE	18° C to 35° C approximately depending on orientation / sunshine
PRIORITY OF USE	ventilation
FACILITY	wall: horizontal or vertical position or at an angle with our angle kit
