SOLARVENTI SV20

SOLARVENTI SV20

Your Capt’Air sent within 48 hours

A surface exposed to the sun 44% greater than SV14.

Neither too big nor too small, this model is appreciated for its performance obviously linked to sunshine and orientation.

With a Y distribute the heat in two directions, provide a second insufflation mouth.

We can provide you with a booster fan if the length of the heat-conducting duct is more than 5m.

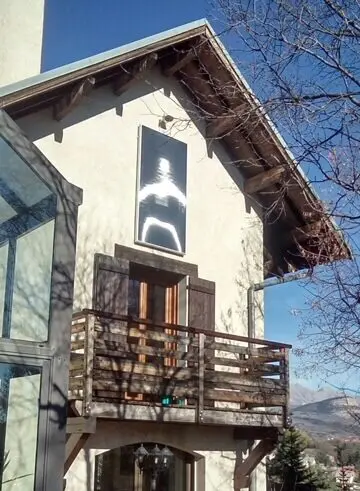

An empty solar box of the same size can be used to preheat the air at the inlet of a double flow CMV.

Characteristics

FRAMEWORK removable - natural aluminum or black or white option (Epoxy paint)
GLAZING LEXAN polycarbonate treated against U.V.
FILTERED black heat-absorbing felt on the entire back side self-cleaning retains particles > 4 microns
REAR SIDE micro-perforated aluminum treated against marine corrosion 2500 perforations / m² for outside air intake

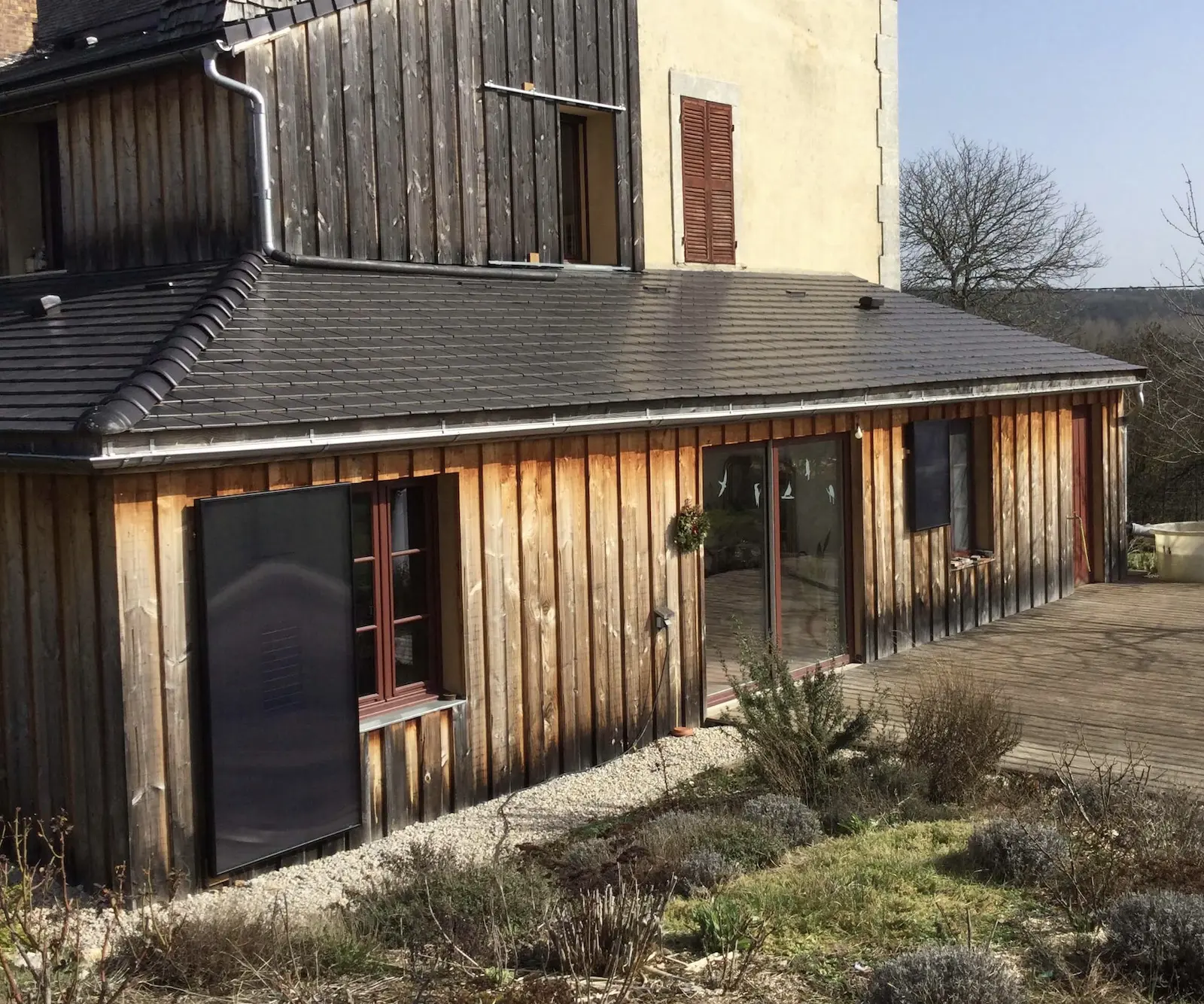

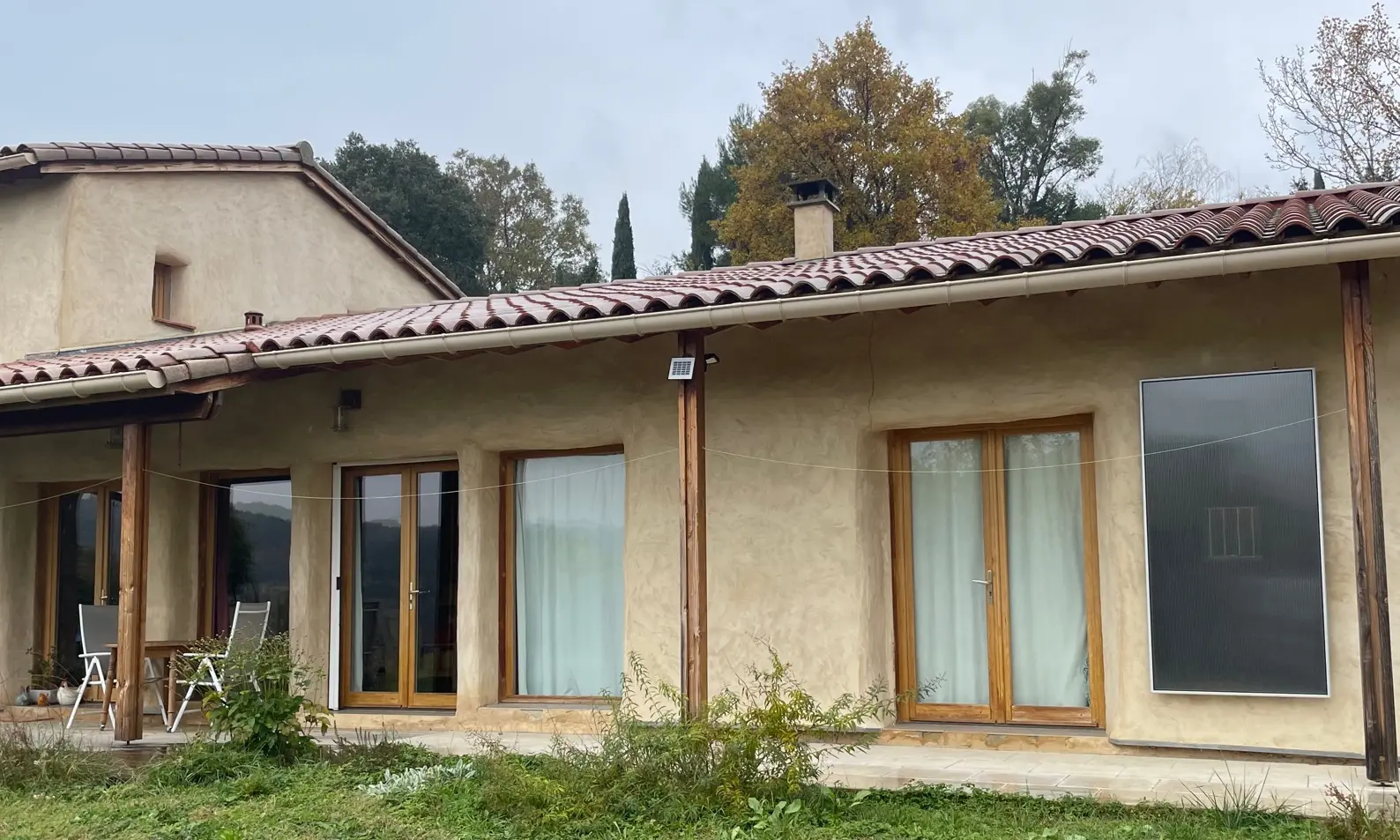

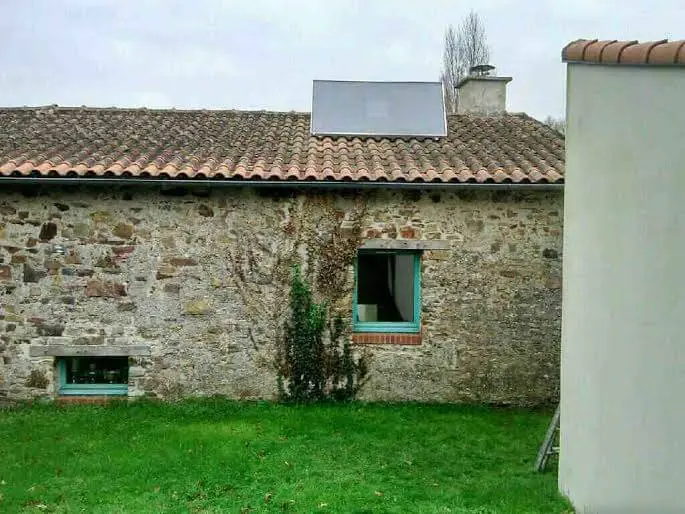

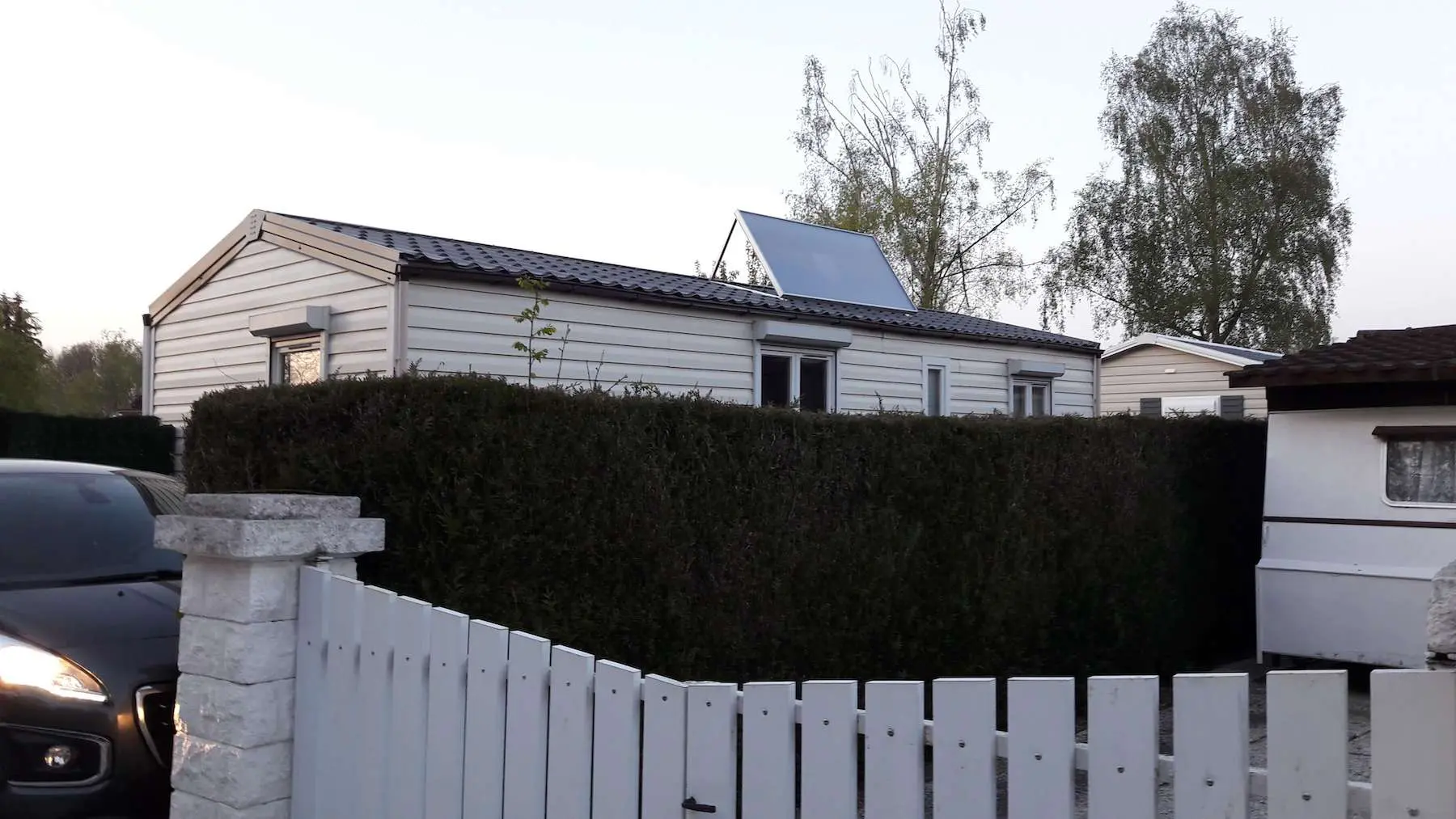

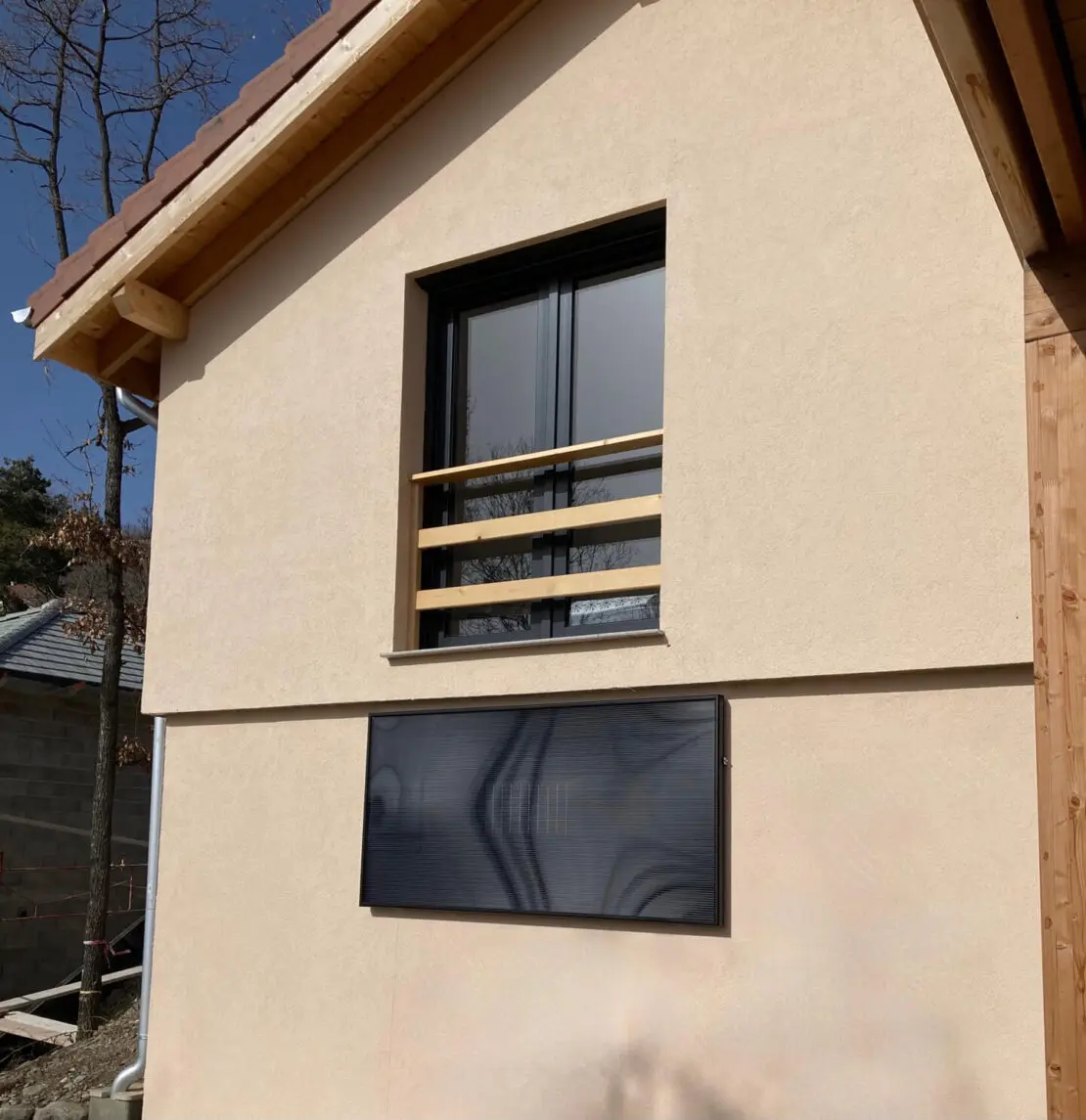

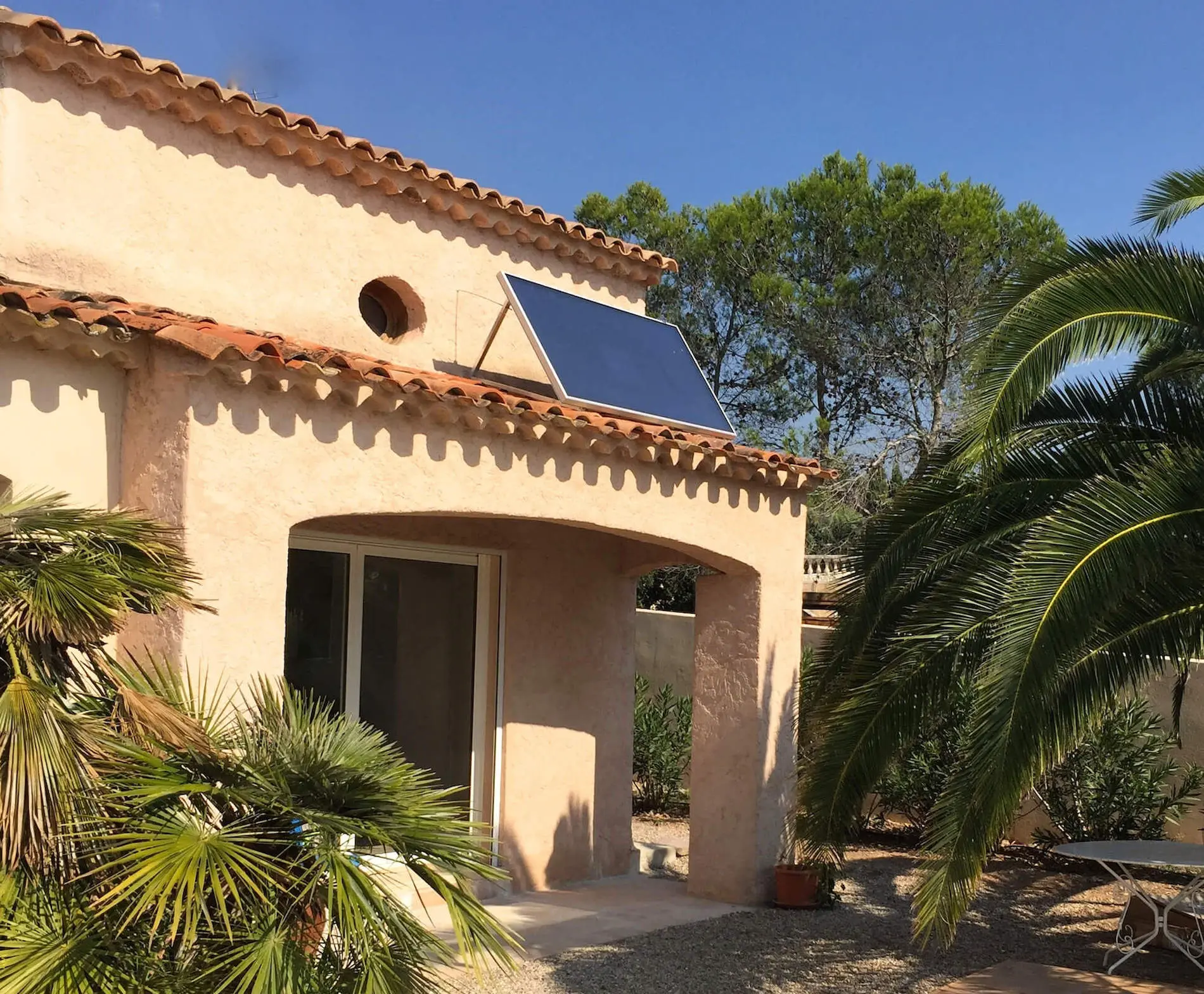

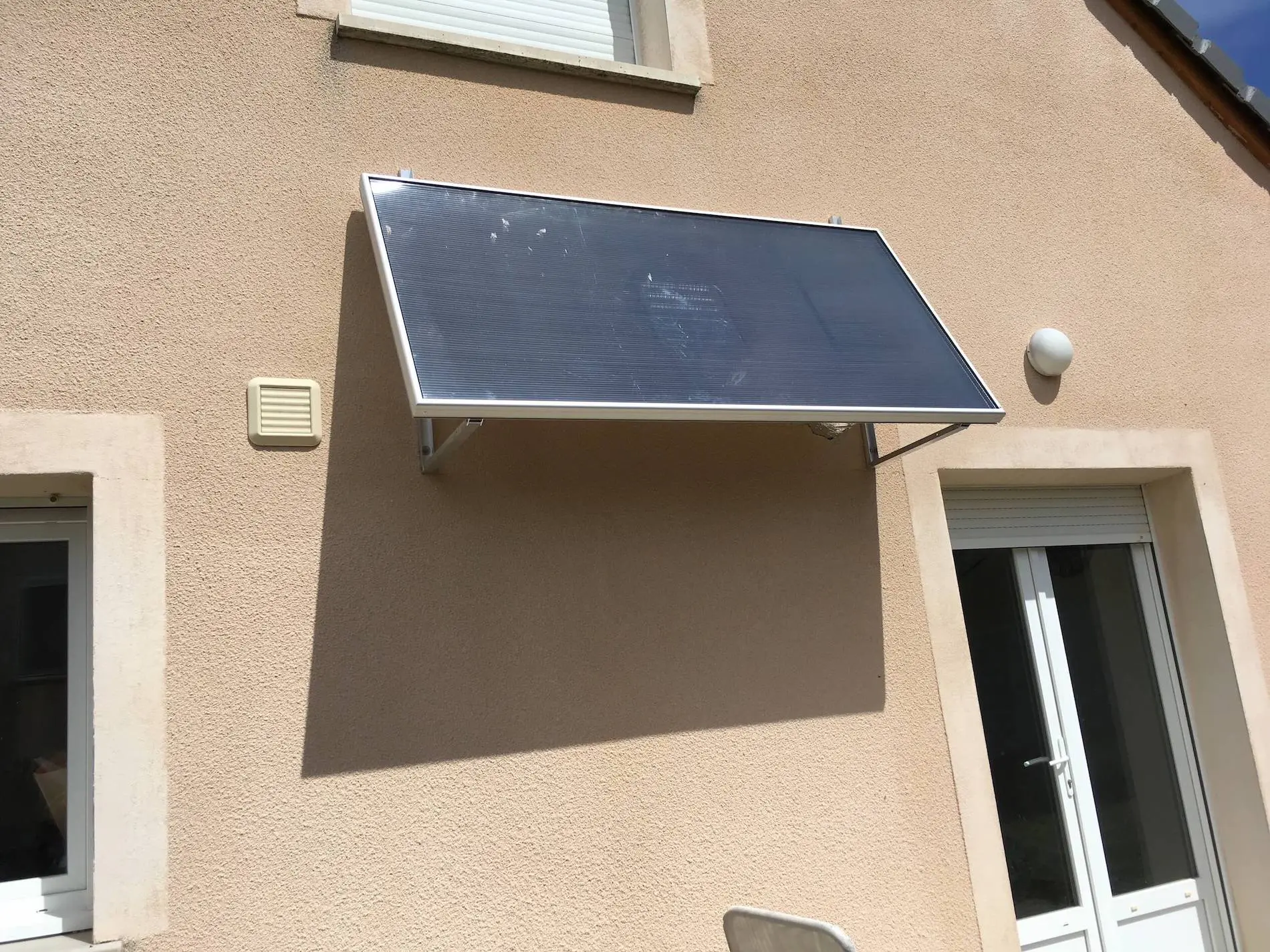

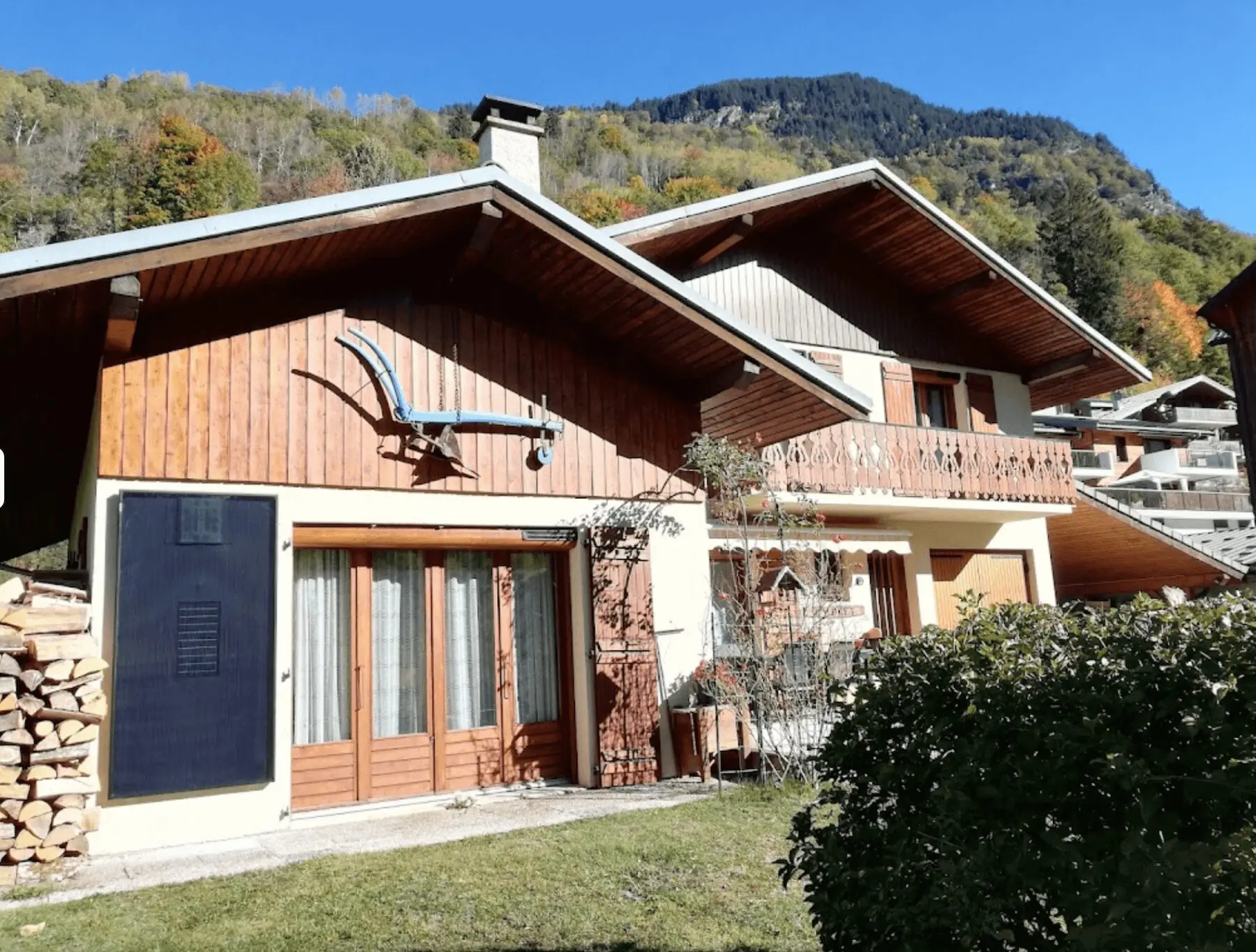

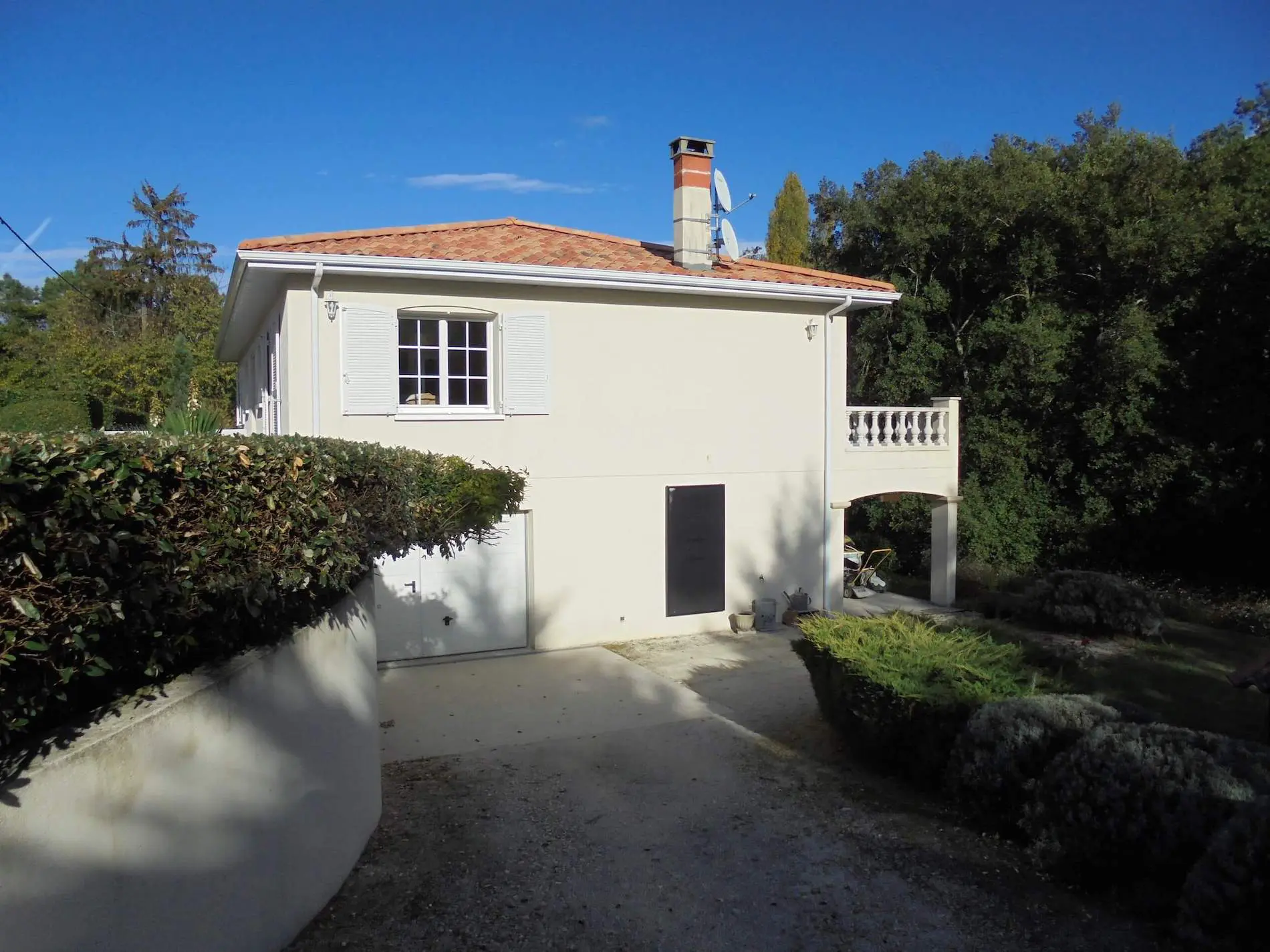

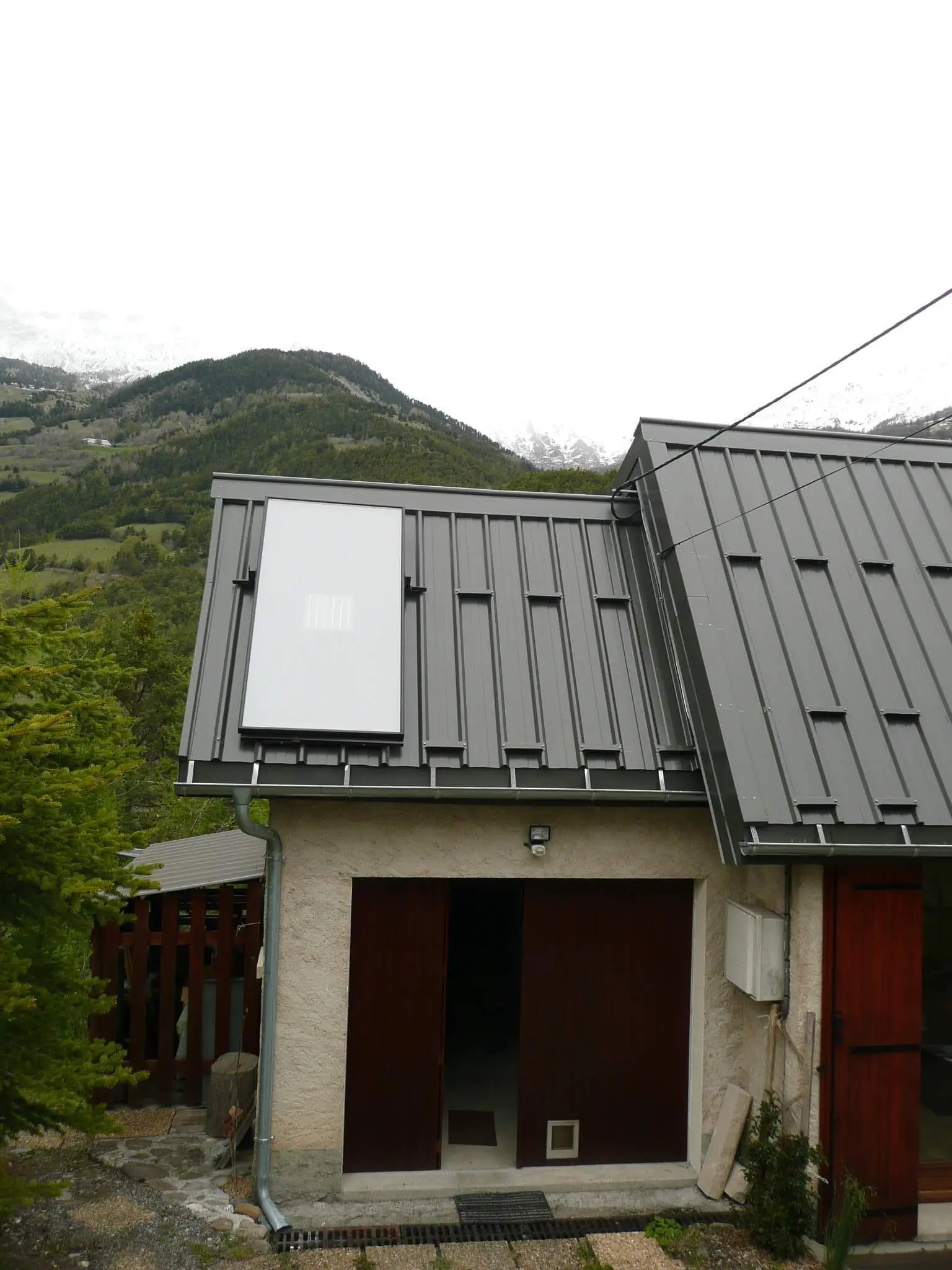

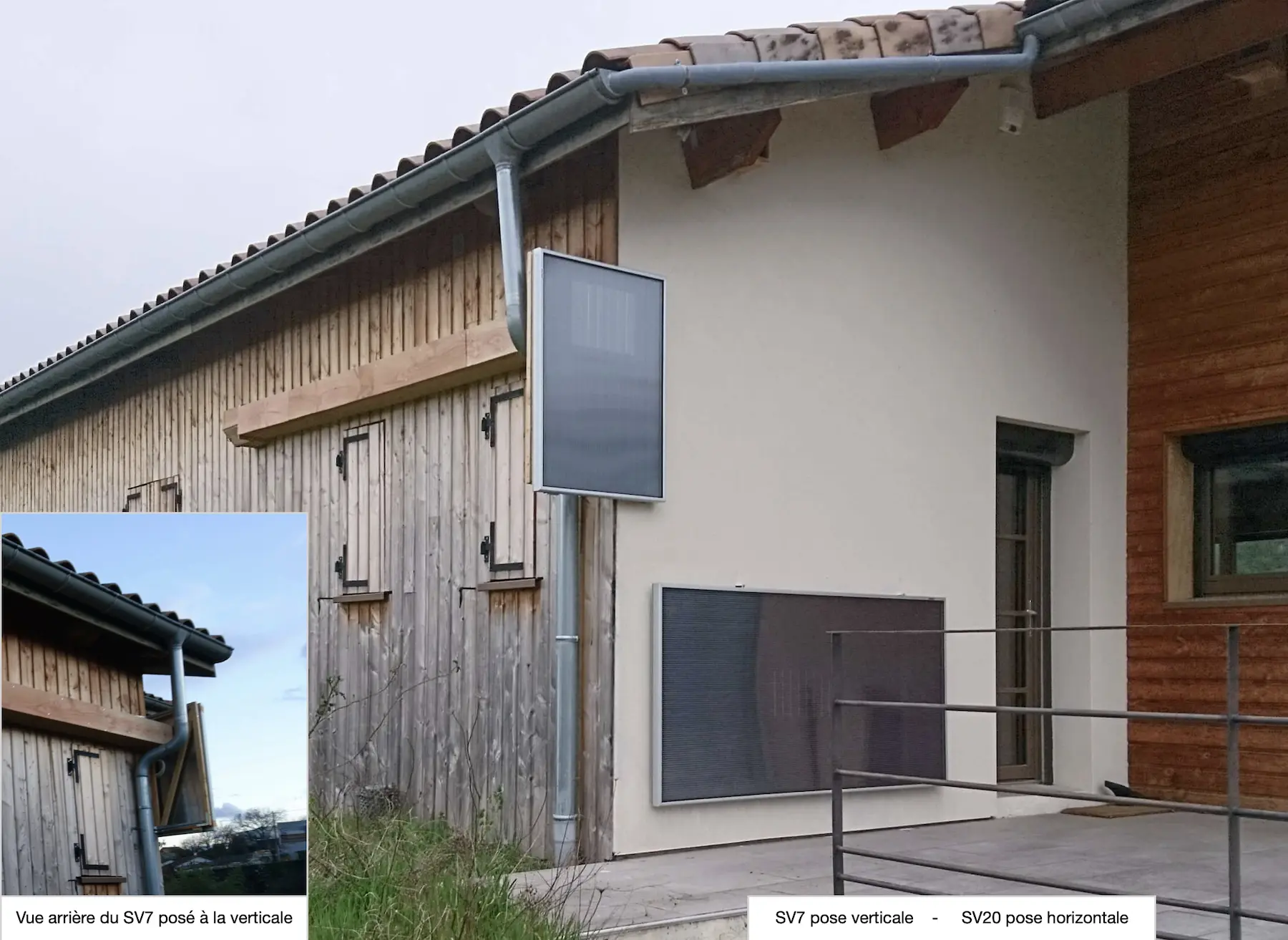

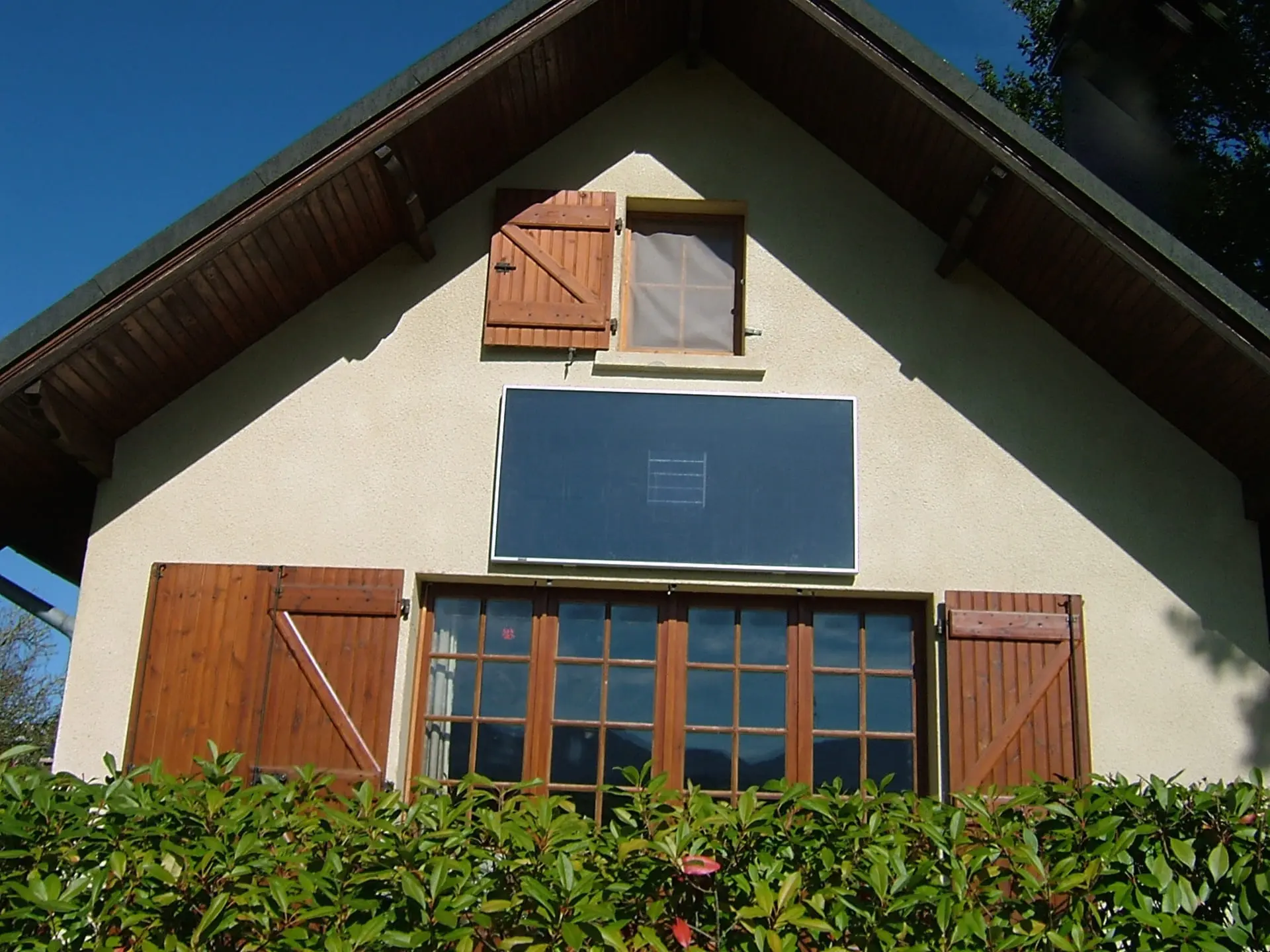

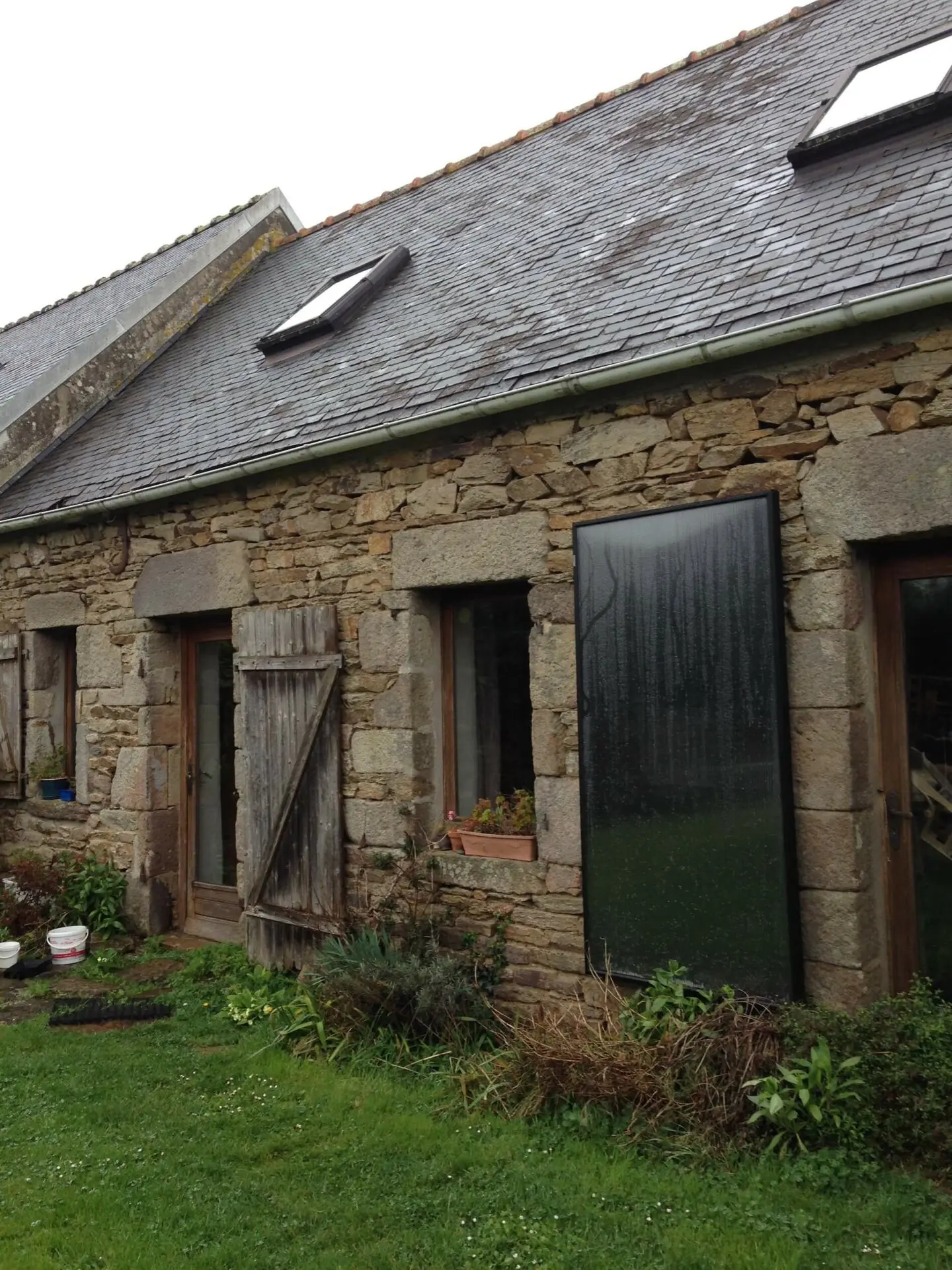

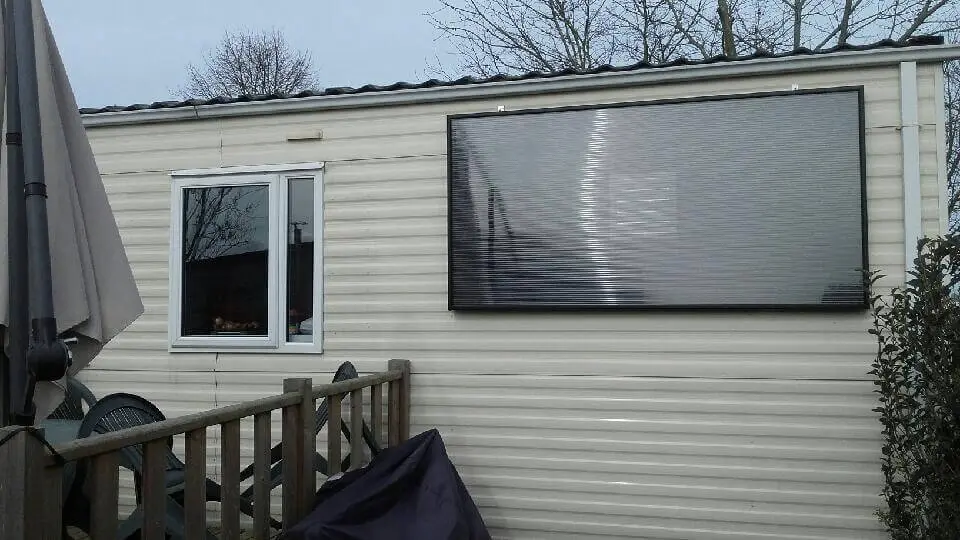

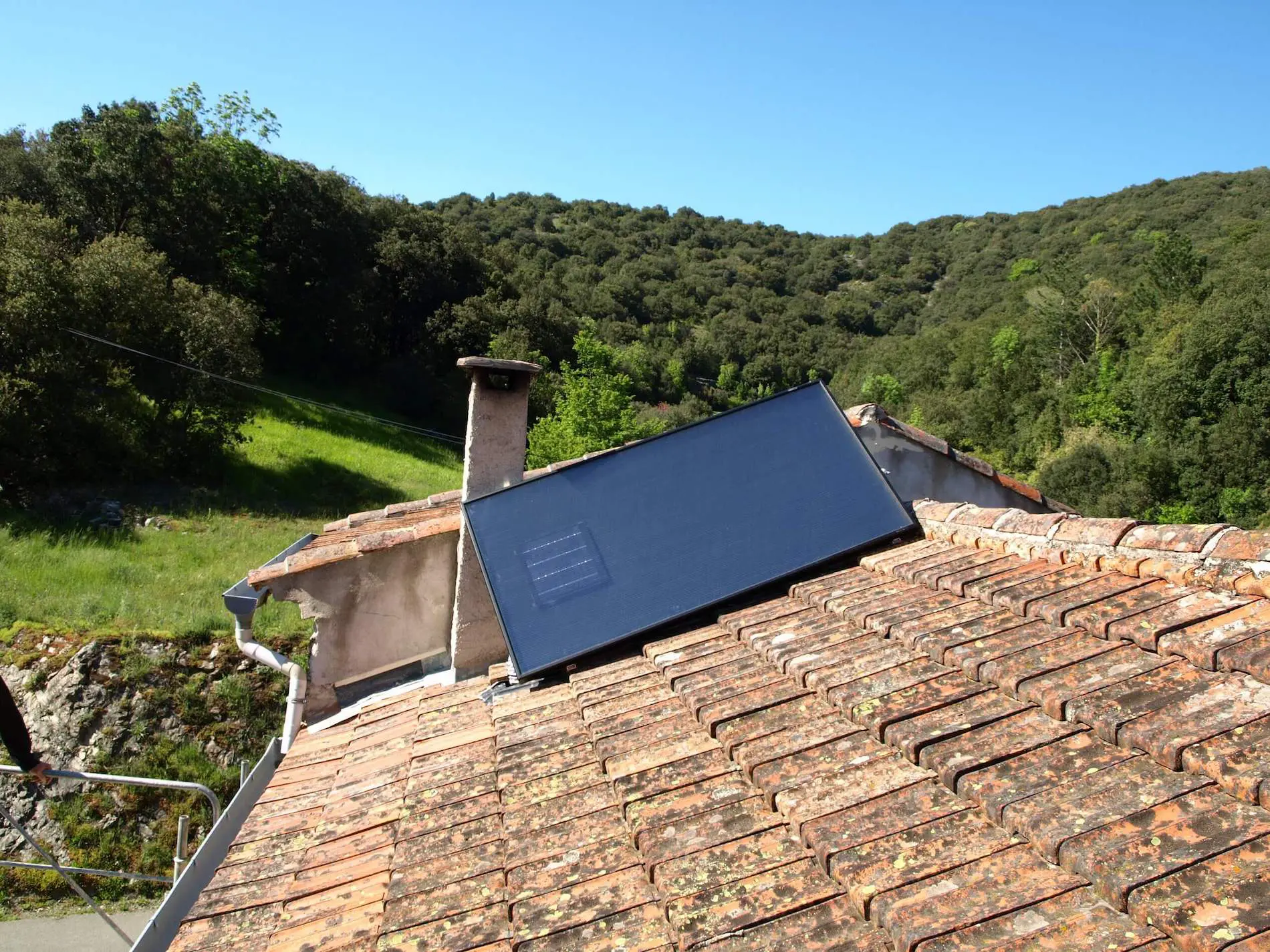

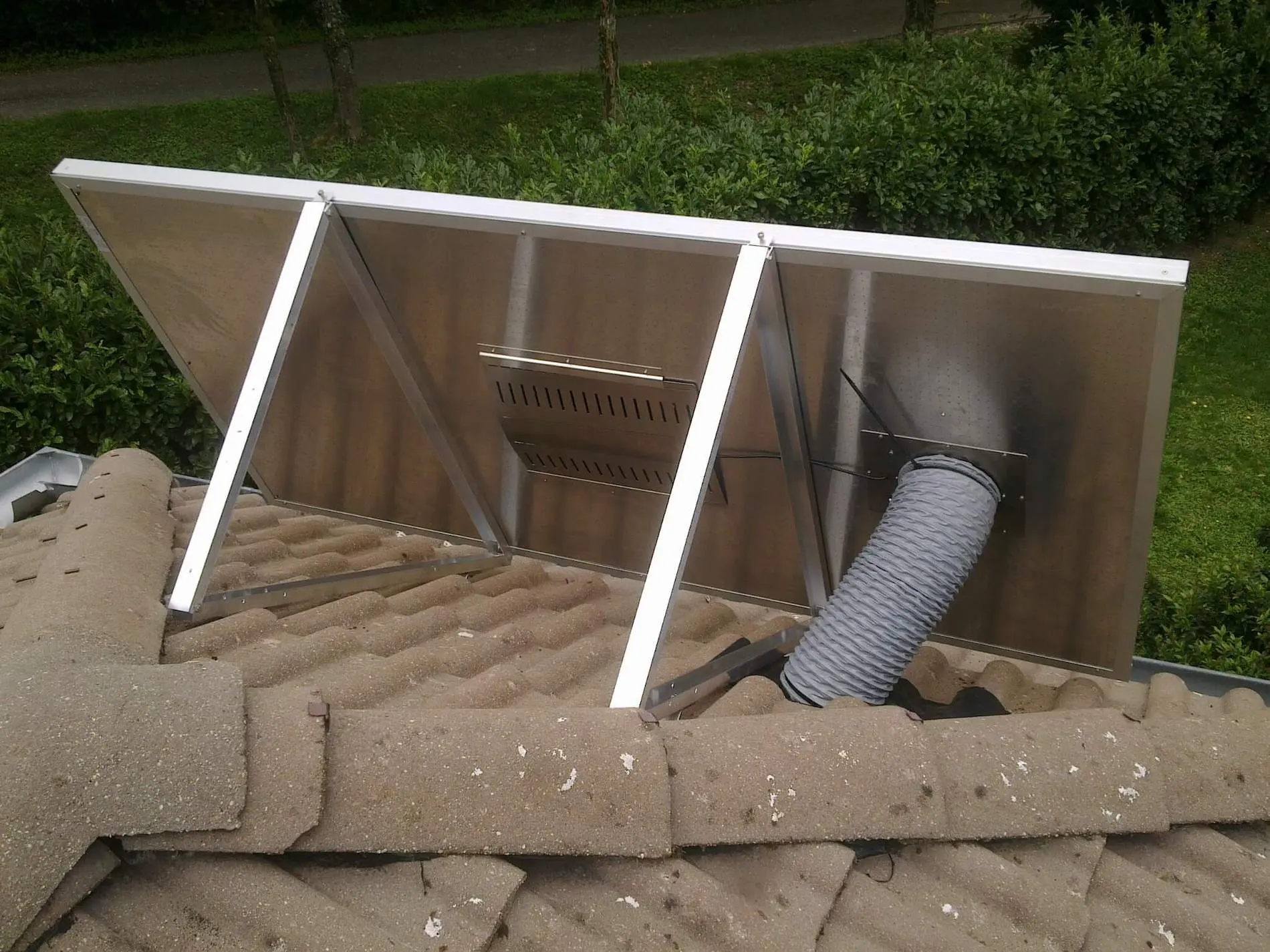

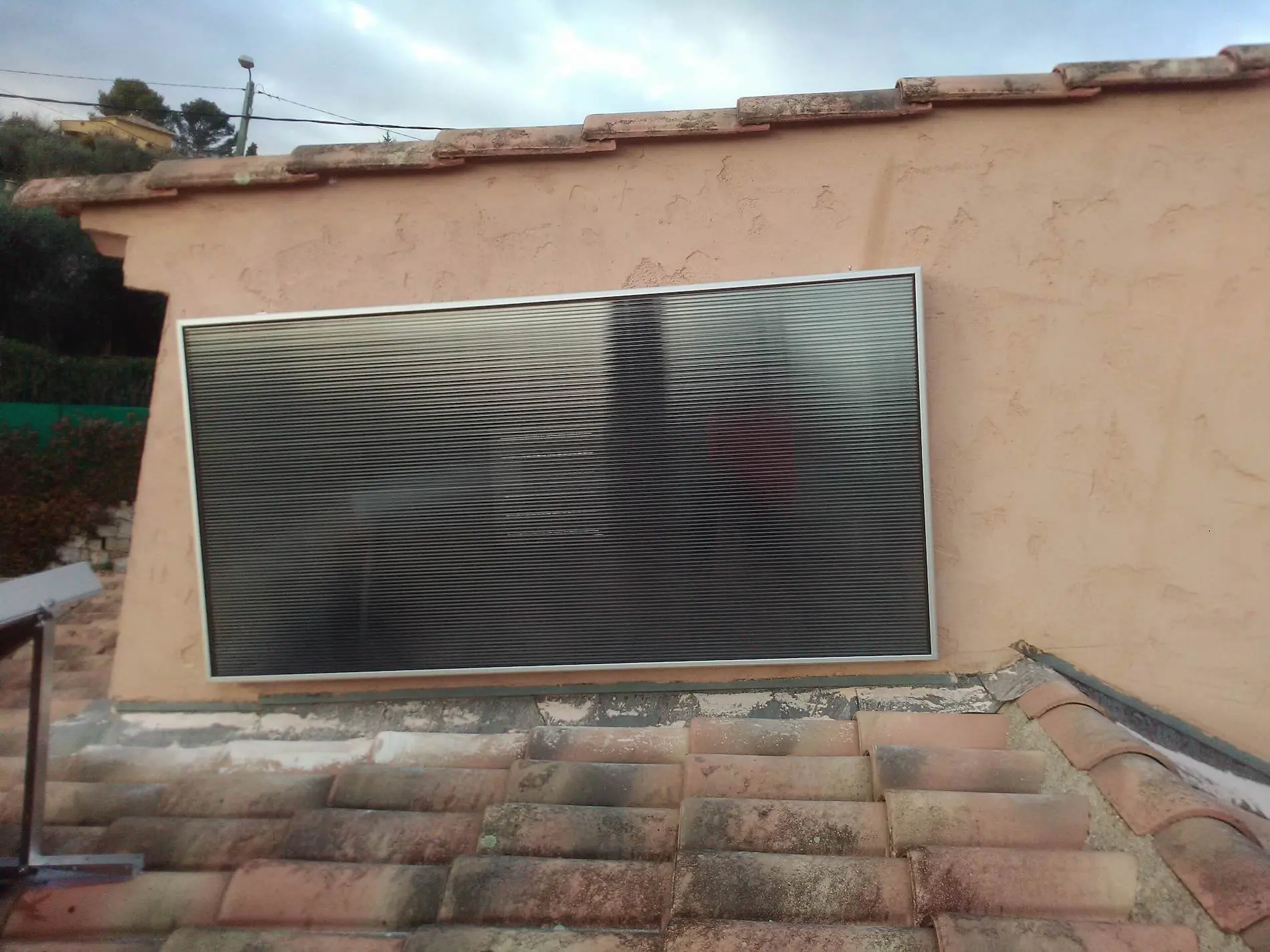

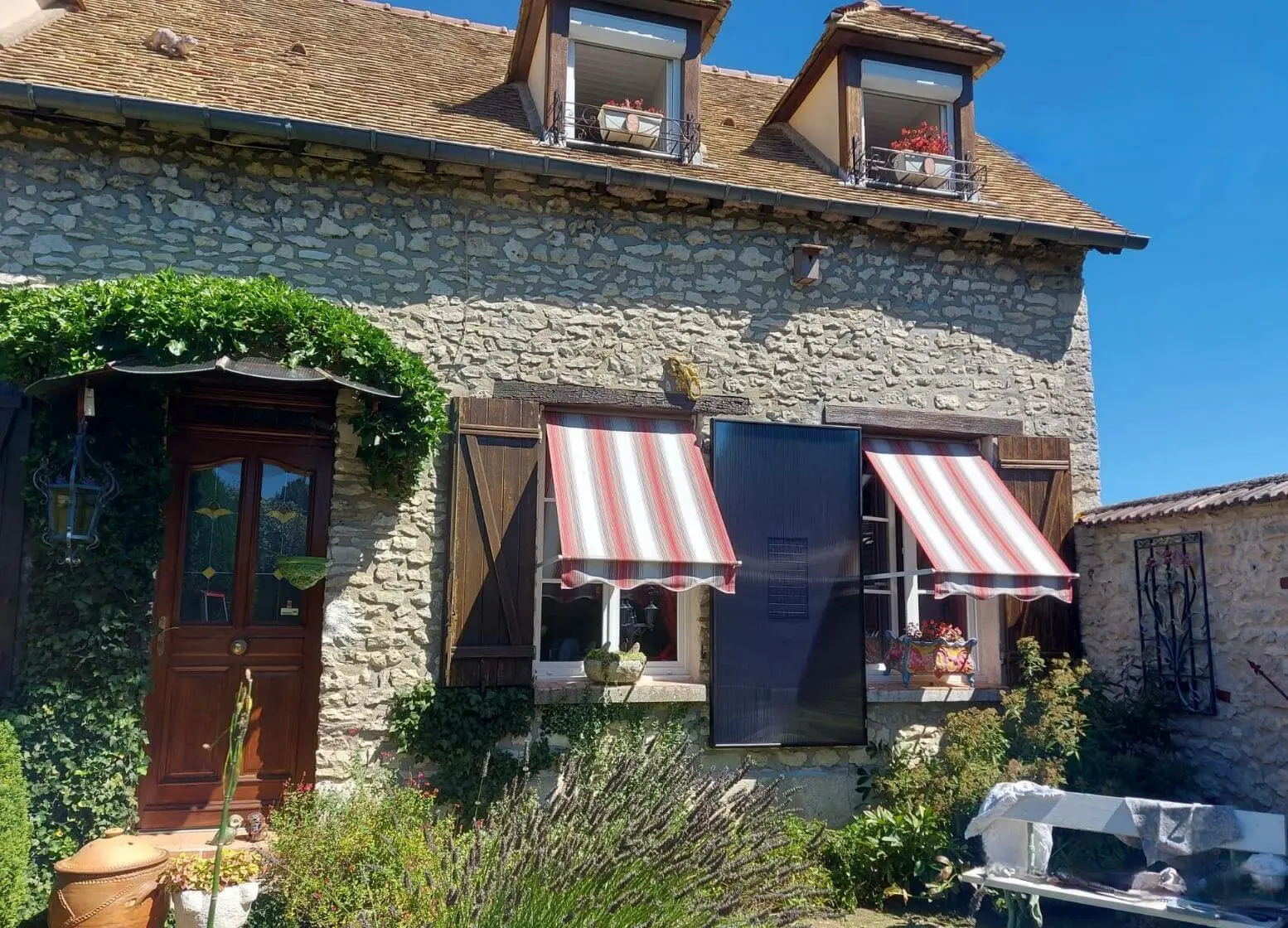

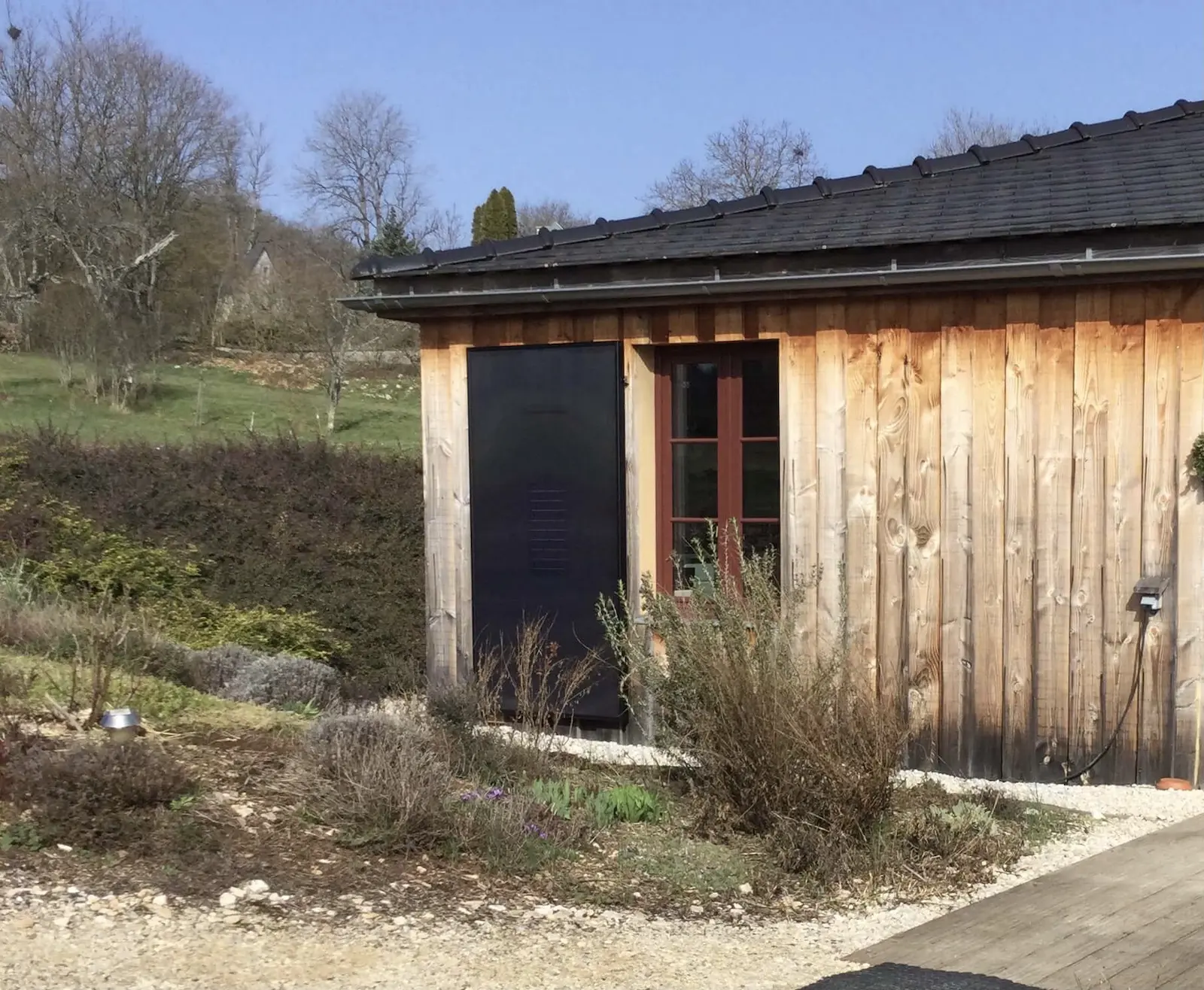

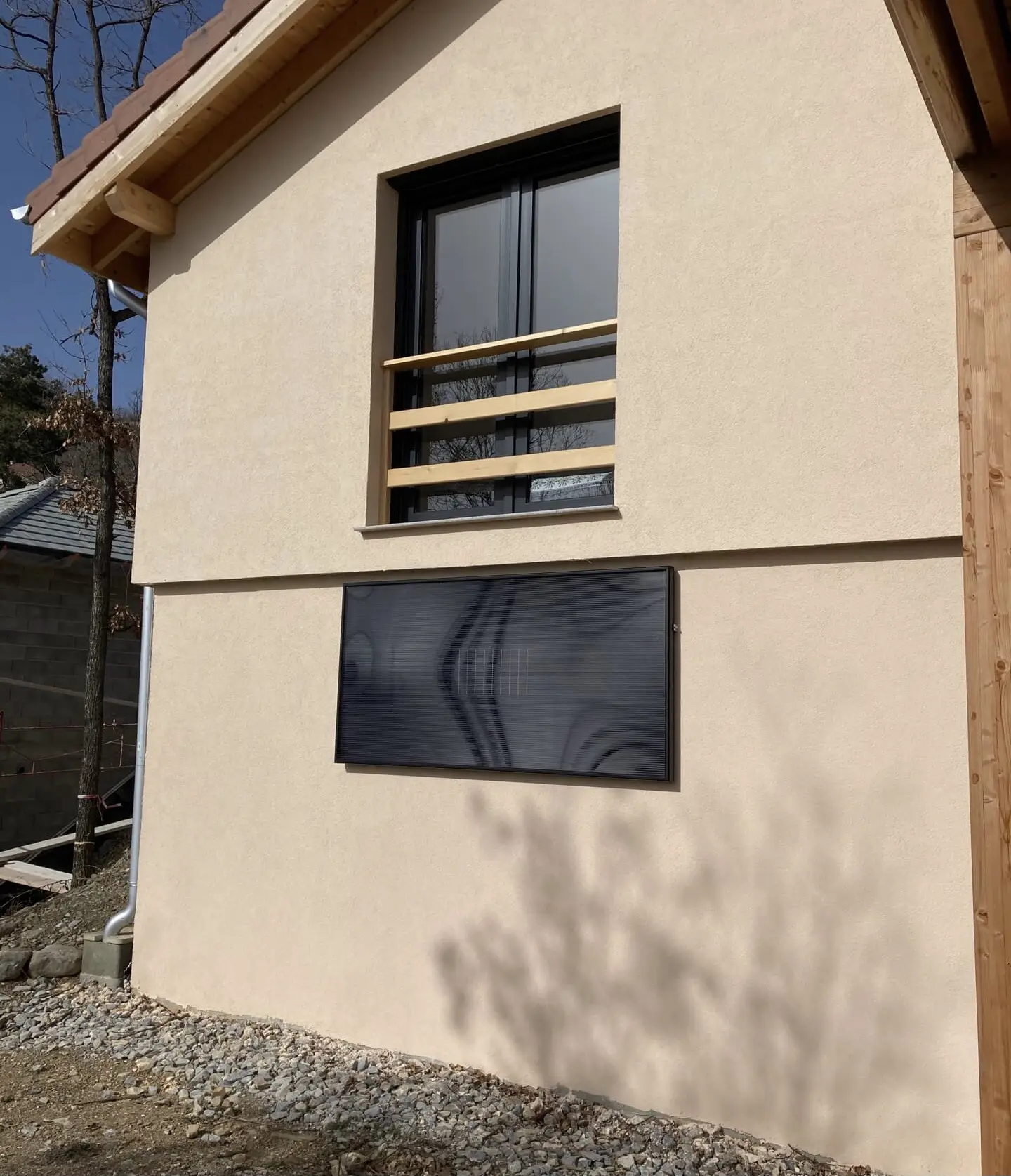

FACILITY >> ON THE WALL: horizontal or vertical position or at an angle with our angle kit | ON THE ROOF: with our roof kit
FAN flow rate 80 to 140 m³ / h | diameter 125mm | soundproof 3.4W (powered by the integrated 18W photovoltaic cell) | insufflation mouth fitted with an anti-humidity disc (non-return valve effect)
ON OFF regulation box (M/A + air flow adjustment + shut-off thermostat) or simple M/A switch
WEIGHT 16 Kg
DIMENSIONS in cm standard 201 x 102 x 5.5 | made to measure max 201 x 102
OUTLET TEMPERATURE 18° C to 50° C approximately depending on orientation / sunshine
HUMID AIR EXTRACTION optional kit (exhaust fan connected to collector)
PRIORITY OF USE heat ++
POWER (approx.) 1300 W
